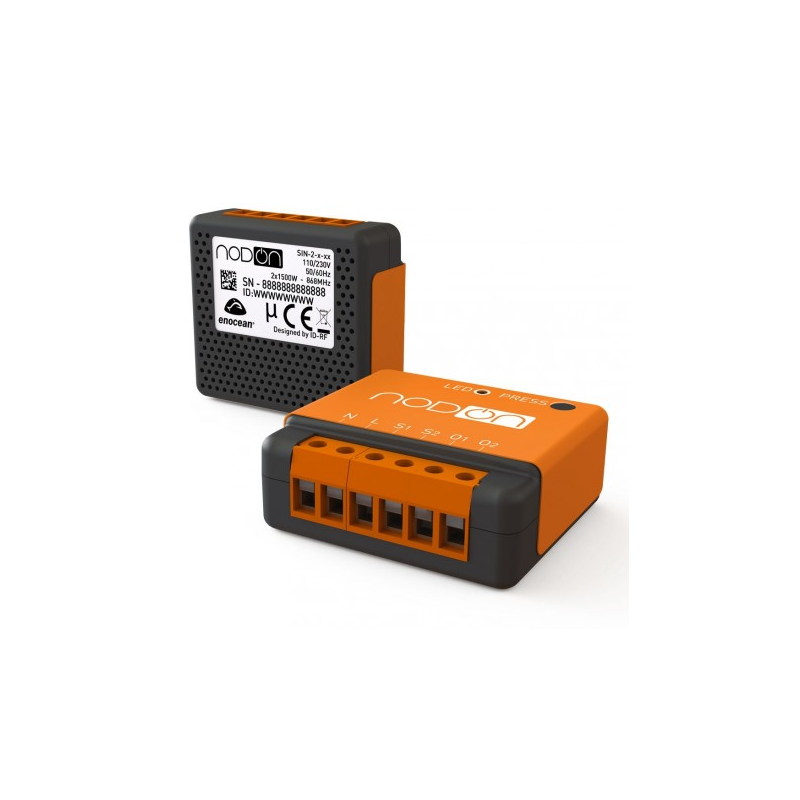

Nodon SIN-2-2-01 - EnOcean Dual Switch Micro Module

The Nodon EnOcean SIN-2-2-01 recessed switch module has two channels that can be controlled via an EnOcean-compatible® home automation control unit or directly via other EnOcean® controllers such as the Soft Remote, the wall switch or the NodOn® card reader.

The Nodon EnOcean SIN-2-2-01 recessed switch module can be mounted behind your existing wired switch, in the ceiling or an electrical outlet, the NodOn® 1-channel recessed module makes it very easy to make your installation smart (lights, heating, garage door, etc.).

The power handling per channel is 1100W.

Nodon SIN-2-2-01 features:

• Power Supply: 230V AC +/-10% - 50Hz

• Maximum Power: 1*2.3kW (1-Channel Version) or 2*1.1kW (2-Channel Version)

• Intrinsic consumption: <1W

• Operating temperature – 0°C to 40°C - Altitude – 2,000m

• EnOcean® Radio Protocol: 868.3MHz Bidirectional - EEP: D2-01-0E (1 channel) / D2-01-12 (2 channels) Range: 30m

• 2 analog inputs for existing wired switch(s)

• Dimensions: 40*45*16.9mm

• Warranty: 2 years

• Standards: EN301489-1 V1.6.1:2013, EN301489-2 V1.6.1:2013, EN300220-1 V2.4.1:2012, EN300220-2 V1.9.2:2011, EN60669
