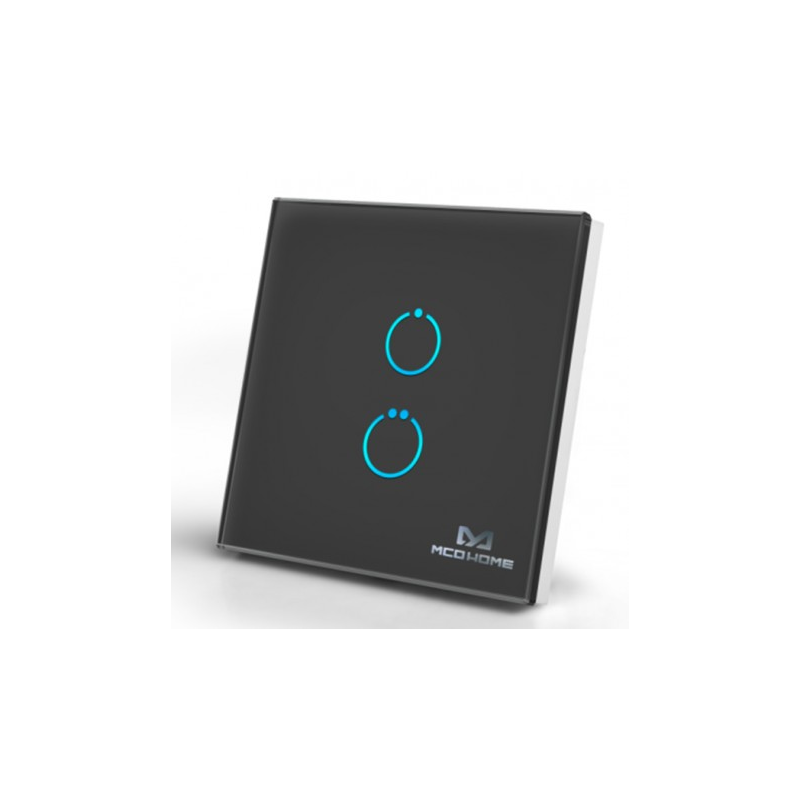

Switch glass touch Z-Wave More MCOHome

The switch MCOHome Z-Wave Plus MH-S412-EU can switch between the 2 connected loads, either manually as a switch with classic, or remotely via the wireless protocol Z-Wave.

The switch MCOHome Z-Wave Plus MH-S412-EU can be included in the Z-Wave network and then be controlled by a controller or a remote controller Z-Wave.

The switch MCOHome Z-Wave Plus MH-S412-EU can control any type of load, either a light or an electrical device.

The switch to the MH-S412-EU supports the association (Group 1). Thus, it is possible to combine up to 5 other devices to control them manually from the switch or the Z-Wave controller.

The switch is also equipped with an indicator LED that shows its status.

Attention, this switch requires the neutral to work. A flush-mounting box depth 50 mm and a diameter of 67mm is recommended for the installation

Features switch MCOHome Z-Wave Plus MH-S412-EU :

• Control two lights or appliances remotely

• Installed in place of an existing switch

• Function ON / OFF

• Supports the association (Group 1 and Group 2)

• Controls two loads locally

• Status LED

• Finish glass, modern design

• The touch buttons

• Type of module : Receiver Z-Wave

• Color : White

• Power Supply : 230 V, 50 Hz

• Wiring : 3-wire, neutral required

• Maximum power : 5A (1100W) for each channel

• Frequency : 868,42 Mhz

• Range : up to 30 m

• Dimensions : 86 x 86 x 43 mm

• Display: blue LED
