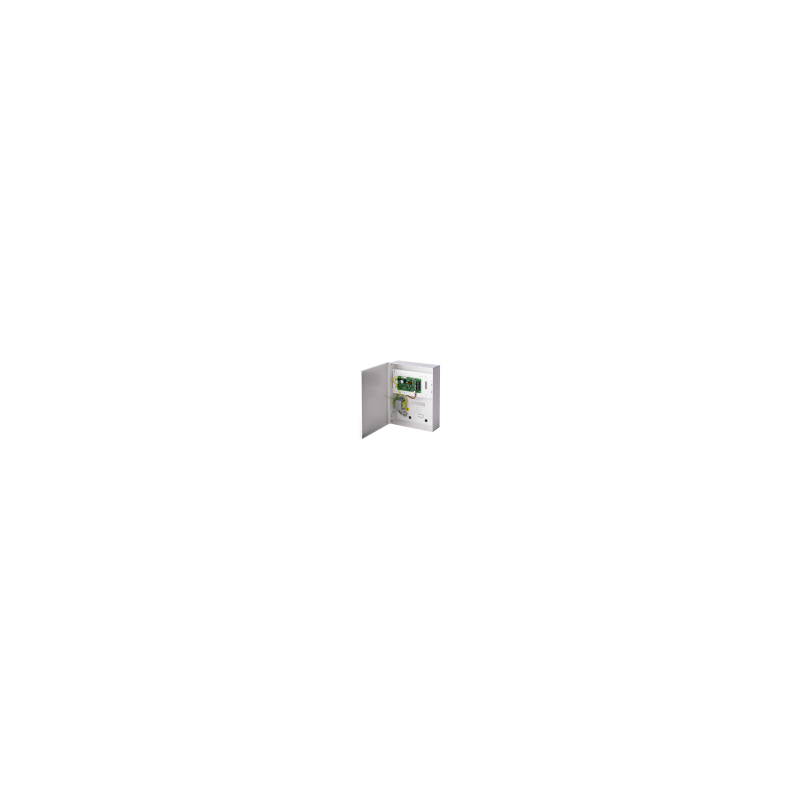

Vanderbilt SPCP333.300 - Box Charger (battery 17Ah) 12V/1.5 A with card, 8 inputs / 2 outputs
€520.74
VAT included
Box Charger (battery 17Ah) 12V/1.5 A with card, 8 inputs / 2 outputs for alarm SPC Vanderbilt
Garanties sécurité(à modifier dans le module "Réassurance")
Politique de livraison(à modifier dans le module "Réassurance")
Politique retours(à modifier dans le module "Réassurance")
Box Charger (battery 17Ah) 12V/1.5 A with card, 8 inputs / 2 outputs for alarm SPC Vanderbilt
The box charger SPCP332 gives the SPC system to a source of local power supply regulated 12 Vdc 2'6 (1'5 Has been made available via the 2 outputs 12vdc) via the X-BUS for security devices attached (for example, the transponders on the X-BUS) of a battery management' 8 hardwired zones and 2 outputs programmable relay having the same characteristics as the SPCE652.
The SPCP332.300 is supplied in a metal housing protected to the opening providing room for a battery 17 Ah.
Features SPCP333.3000:
|
Number of inputs on the motherboard |
8 |
|
Resistance end of line |
Defaults to 2 x 4k7. other possible combinations |
|
Number of relays on the motherboard |
2' freely configurable (30 Vdc/max. 1 A - resistive load) |
|
Interfaces |
X-Bus (arrival, departure, branch) |
|
Contact self-monitoring |
Self-protection at the opening and tear |
|
Supply voltage main |
230 VAC, + 10%/ -15%, 50 Hz |
|
Intensity of operation |
Max. 117 mA at 12 Vdc (All relays activated) |
|
Operating current optimal |
Max. 77mA at 12 Vdc |
|
Output voltage |
11-14 Vdc in normal operation (powered at 230V, and charged battery) |
|
Auxiliary power (nominal) |
Max. 1500 mA at 12 Vdc (750 mA per output) |
|
Battery Type |
YUASA NP17-12IFR (17 Ah), not included |
|
Operating temperature |
0 ~ +40 °C |
|
Color |
RAL 9003 (white) |
|
Weight |
6,300 kg |
|
Dimensions (L x H x P) |
326 x 415 x 114 mm |
|
Key Box / Cabinet |
Grand box hinge (mild steel 1.2 mm) |
|
Standard / Certificate |
EN50131-1 / EN50131-3 / EN50131-6, Grade 3, Class II |
SPCP333.300
10 Items
Data sheet
- Security
- Expansion Module
- Type
- Wired
- Standard
- NFA2P
Specific References
- EAN13
- 4025515471011
