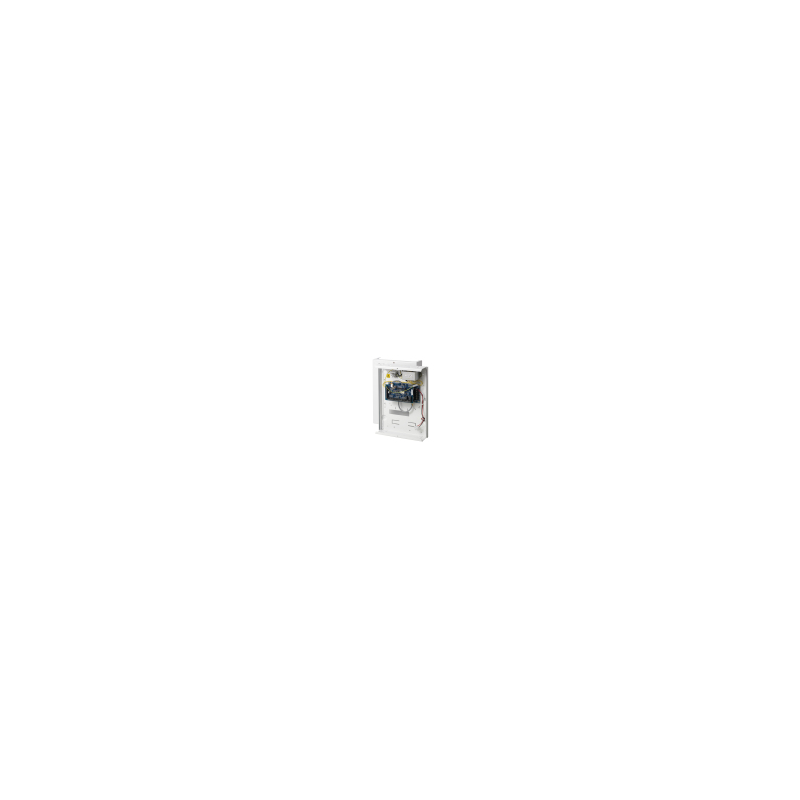

Vanderbilt SPCP333.300 - Box Charger (battery 7Ah) 12V/1.5 A with controller card 2-door
€483.53
VAT included
Box Charger (battery 7Ah) 12V/1.5 A with controller card 2-door for alarm SPC Vanderbilt
Garanties sécurité(à modifier dans le module "Réassurance")
Politique de livraison(à modifier dans le module "Réassurance")
Politique retours(à modifier dans le module "Réassurance")
Box Charger (battery 7Ah) 12V/1.5 A with controller card 2-door for alarm SPC Vanderbilt
The box charger SPCP432 gives the SPC system to a source of local power supply regulated 12 Vdc 2'6 A (1'5A available via 2 outputs 12vdc) via the X-BUS for security devices attached (for example, the transponders on the X-BUS) of a battery management' as well as a controller board 2 doors with the same characteristics as the SPCA210.
The SPCP432.300 is supplied in a metal housing protected to the opening providing room for a battery 7 Ah.
Features SPCP432.300 :
|
Number of inputs on the motherboard |
4 (2 for push-button, and 2 for door contact) |
|
Resistance end of line |
Defaults to 2 x 4k7. other possible combinations |
|
Number of relays on the motherboard |
2 (body lock) 30 Vdc / max.1 |
|
LED indicators |
4 outputs (1 access denied, 1-access is validated, the reader) |
|
Number of card readers |
2 |
|
Interfaces |
X-Bus (Input / Output) |
|
Contact self-monitoring |
Self-protection at the opening |
|
Supply voltage main |
230 VAC, + 10%/ -15%, 50 Hz |
|
Intensity of operation |
Max. 124 mA at 12 Vdc (All relays activated) |
|
Operating current optimal |
Max. 82 mA at 12 Vdc |
|
Output voltage |
11-14 Vdc in normal operation (powered at 230V, and charged battery) |
|
Auxiliary power (nominal) |
Max. 1500 mA at 12 Vdc (750 mA per output) |
|
Battery Type |
YUASA NP7-12FR (7 Ah), not included |
|
Operating temperature |
0 ~ +40 °C |
|
Color |
RAL 9003 |
|
Weight |
4.700 kg |
|
Dimensions (L x H x P) |
264 x 357 x 81 mm |
|
Key Box / Cabinet |
Small box |
SPCP432.300
2 Items
Data sheet
- Security
- Expansion Module
- Type
- Wired
- Standard
- NFA2P
Specific References
- EAN13
- 4025515471035
