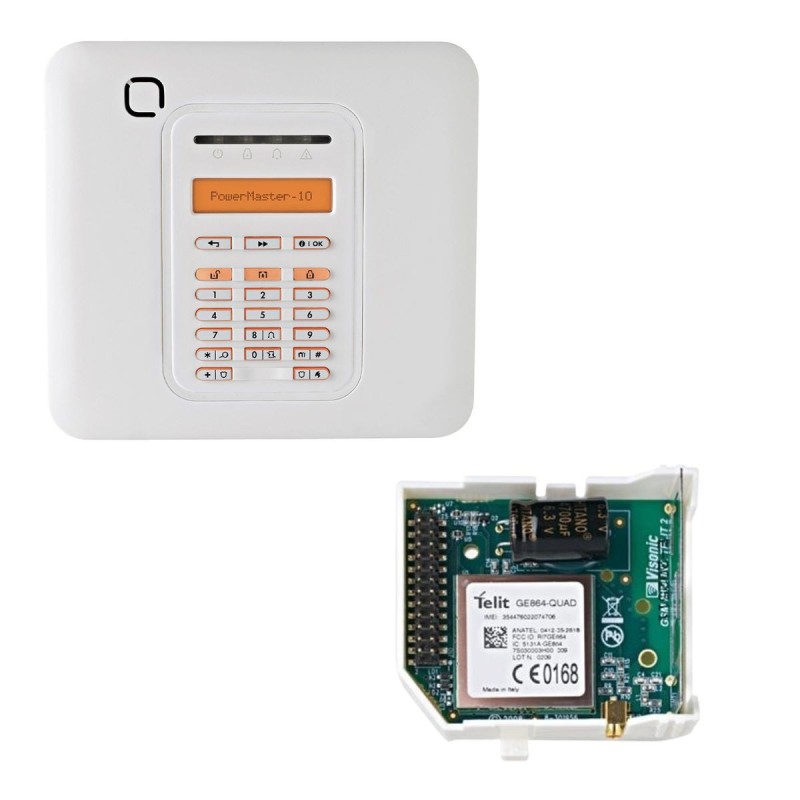

Visonic PowerMaster 10 Triple V20.2 Central GSM Alarm 3G

Central delivered with 3G GSM transmitter

The PowerMaster-10 G2 control panel is an ultra-compact wireless alarm system intended for the residential market.

Using Visonic's PowerG radio technology, which is quick and easy to install, it offers advanced programming tools and functions as well as powerful diagnostic tests.

Its intuitive menu allows easy navigation that fully satisfies its users.

The configurable label of the zones provides a great deal of user-friendliness to the system.

Robustness and reliability of PowerG radio technology

• Two-way communication offering high interactivity between the plant and its peripherals.

• Huge transmission range of 2,000 m in free field* to protect larger rooms without the need for a repeater.

• Synchronized TDMA technology prevents message collision and frequency blocking

• FHSS (frequency hopping spread) technology eliminates interference between electromagnetic devices

• Highly secure AES-128-bit encrypted communications • Adaptive wireless transmission to extend battery life by up to 8 years and dynamically adapt the communication path between the plant and repeaters according to changes in environment.

New set of tools to speed up and facilitate on-site installation

• A special recording button available on each device simplifies recording procedures.

• All peripherals are configurable from the keyboard and control panel - No switch is required, so no need to reopen them once closed.

• Customizing default programming templates allows devices to be configured collectively.

• The indication of the quality of the radio signal is displayed by an LED on each device allowing

The installer to choose the optimal location without having to move to the plant during installation.

• A powerful diagnostic tool indicates the quality of the RF link instantly and according to the last 24 hours, checks the status of the installation, its peripherals and immediately displays problems.

Many powerful remote management features

• Remote registration, configuration and maintenance of all devices in the system.

• Ability to perform remote walking tests with the help of an on-site person and quarantine a detector.

• Periodic remote diagnostics with feedback on the status and use of the system, faults, radio link and GSM communications support.

Ecological and energy-efficient system

• Eliminates unnecessary transmissions using synchronized two-way communication.

• Extended battery life.

• Reduced energy consumption and pollution thanks to adaptive transmission power.

Characteristics

Visonic PowerMaster 10 Triple V20.2 central alarm GSM 3G :

• Two-way communication ensures no loss of alarm messages

• The radio range of transmission is far above the industry standard allowing repeater-free installations even in large rooms with large surfaces*

• Extended battery life in most PowerG devices - between four and eight years for typical use

• All devices are configured from the control panel - no devices turn off and none need to re-open devices once closed registered

• The visual indication of the quality of the radio signal is displayed on the device and allows the installer to choose the optimal installation location without having to consult the control panel during assembly

• Custom configuration templates allow devices to be configured collectively rather than individually

• The diagnostic tool indicates the quality of the RF link based on the statistics of the last 24, checks the status of the installation, its peripherals and immediately displays problems. Powerful tools for remote monitors such as remote programming of the control panel and its peripherals, remote power on, and radio link quality measurements of all peripherals

• Multi-frequency channels (up to 50) using FHSS technology avoid interference with other wireless communication devices

• The communication is protected by the recognized AES-128 encryption algorithm to protect the system from sophisticated sabotage such as "code capture" or message substitution

• Message link collisions are eliminated with TDMA communication technology used in GSM, WIMAX and Buetooth cellular networks.

• The devices dynamically optimize their route to the plant using available repeaters according to changes in environment

• 30 wireless zones

• 8 user codes

• Autonomy of 12 or 24 hours on backup batteries

• Single wired area

• Integrated PSTN alarm

• Software updates performed remotely

• Available in multiple languages

*Emission range of the field of visibility measured: 2,000 m to 8 m, 750 m to 2 m
