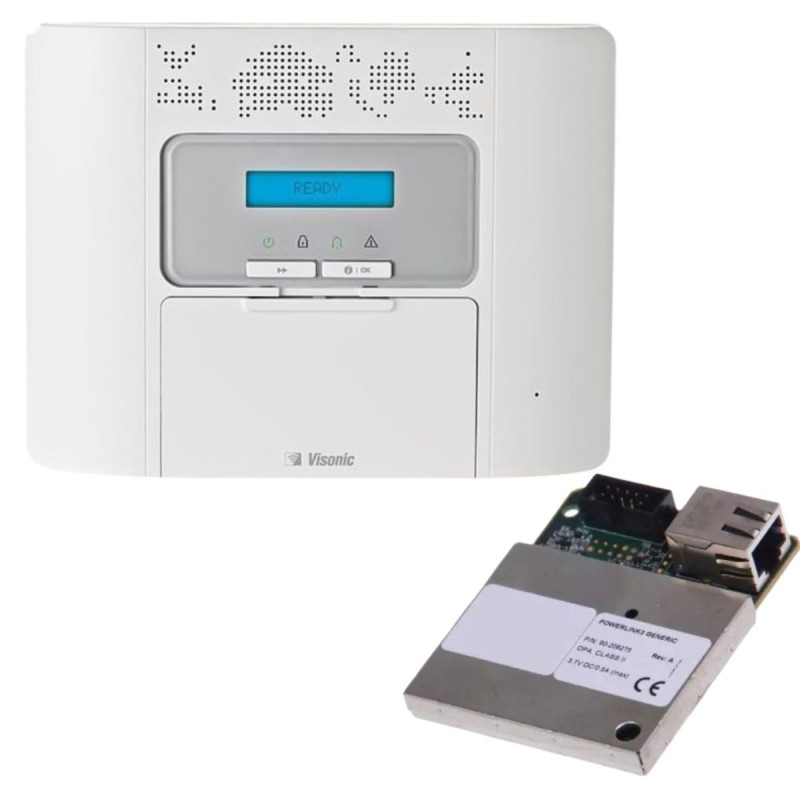

Central alarm Visonic Powermaster 30 IP NFA2P V20.2

The alarm center integrates a PSTN and IP telephone transmitter

We also program your plant free of charge on request

The power plant comes with its power cable.

Your Visonic alarm system is guaranteed for 5 years at no extra charge!

The alarm centre can be installed both on a PSTN telephone line (France Telecom) and on a digital line (ADSL subscription).

Thanks to the voice call the PowerMaster 30 control panel will warn you on your phone or whether you are of an alarm triggering

Thanks to the PowerLink3 IP transmitter you can control your PowerMaster control panel with your smartphone thanks to the VisionicGO application.

The plant has an internal siren of 110 dB.

The control panel can manage up to 64 zones or 64 different detectors, 30 different users and 8 sirens.

It can be associated with many sensors.

Central alarm features Vionic PowerMaster 30 NFA2P V20.2:

• NFA2P approved

• Support for over 120 wireless devices

• Up to 64 zones

• 48 user codes

• Up to 32 keyboards, 32 remote controls, 8 sirens, 4 repeaters

• Extended emission range up to 2000m

• Battery life between 5 and 8 years

• Remote module radio I/O 48/16 max.

• A wide range of PowerG devices for every application

• SirenNet: uses smoke detector buzzers for all alarms

• 128bit FHSS/ARMT/AES Technologies

• All devices are configured from the panel

• Adaptable transmission power

• Special registration button for each device simplifies recording procedures

• Custom configuration templates allow devices to be configured collectively

• Signal quality indication

• The powerful diagnostic tool shows RF link quality based on statistics from the last 24 hours and bidirectional measurements on demand, displaying immediate problems and enabling installation verification during system setup at the customer's site.

• Conducting remote walking tests by anyone in the house

• PGM output activation on temperature/brightness/presence detection value

• Time of attendance or absence management

• Armament with timed open area

• Remote configuration and diagnostics

• Analog reporting formats: SIA, Contact ID, Scancom; IP: SIA IP, Visonic PowerNet

• PSTN,IP, GSM and GPRS communication (optional)


  • Unique accessibility and performance

  • Frequency hoppings: 8 / 4 / 50

  • 24-hour battery backup – 7.2V, 1,300mAh, NiMH; 48 hours – 9.6V, 1,800mAh, NiMH

  • Radio frequencies 433-434 / 868-869 / 912-919MHz

  • Internal or external power supply according to local regulations

  • Dimensions: 266 x 206 x 63mm

  • Weight: 1.44Kg
