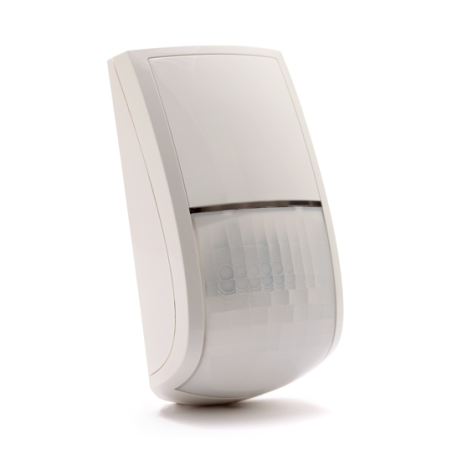

Risco RK515DTBG30A motion detector anti-mask Bus Risco

BWare™ is the commercial name of the series of detectors peak of the group RISCO.
With detection technologies RISCO, these sensors elegant and easy to install and are ideal for commercial, institutional and upscale residential.

BWare™ is extremely reliable thanks to the microwave K-band, associated with other unique technologies of detection.

Its convex lens provides a detection performance improved with its wall of gold-plated and self-protection lid for superior reliability.

Features Risco RK515DTBG30A :

• Hyper-frequency K-band for better performance and immunity to false alarms

• inner cover protecting the PCB

• Stylish Design with a single convex lens

• Double Hyper-frequency and IRP (MW & PIR)

• Coverage 15m

• Technology anti-camouflage ―Anti-Cloak™ (ACT™)

• Green Line™ for disabling the Hyper-frequency for the disarmament of the system

• Anti-mask IR active on the models of category 3

• Triple eol resistor EOL built-in, selection by jumper

• Relay optics against sabotage by magnet

• Autoprotections wall/corner and cover

• Lenses corridor, curtain (option)

• Model designation : RK515DTG3: BWare™ DT AM grade 3 15m (50’)

• RK 515DTGL: BWare™ DT Grade 2 15m (50’)

• RA51000000A: BWare™ Pivot wall-ceiling

  Type : DT inside

• PD6662, EN50131-2-4 : Grade 3

• RISCO Bus : Special Models BWare Bus

• Hyper-frequency K-Band

• Pir detector Dual element

• Technology anti-camouflage ― Anti-Cloak™

• Green Line

• Intelligent processing of digital signals

• True temperature compensation

• Resistance of end-of-line built-in, selection by jumper

• Method anti-mask with IR active

• Coverage wide angle 15m

• Optional lenses – corridor 23m, curtain 15m

• Mounting height – 2.1 m - 2.7 m

• Optional accessories - Swivel

• Power consumption - 16mA at 12VDC (typical) 41mA at 12VDC (max)

• Voltage requirements ― 9-16VDC

• RF immunity ― complies with the standard EN50130-4

• Operating temperature - -10°C to 55°C

• Storage temperature ― -20°C to 66°C

• Protection by filtering the white light

• Dimensions : 127,6 x 64,6 mm

• Weight - 120 g
