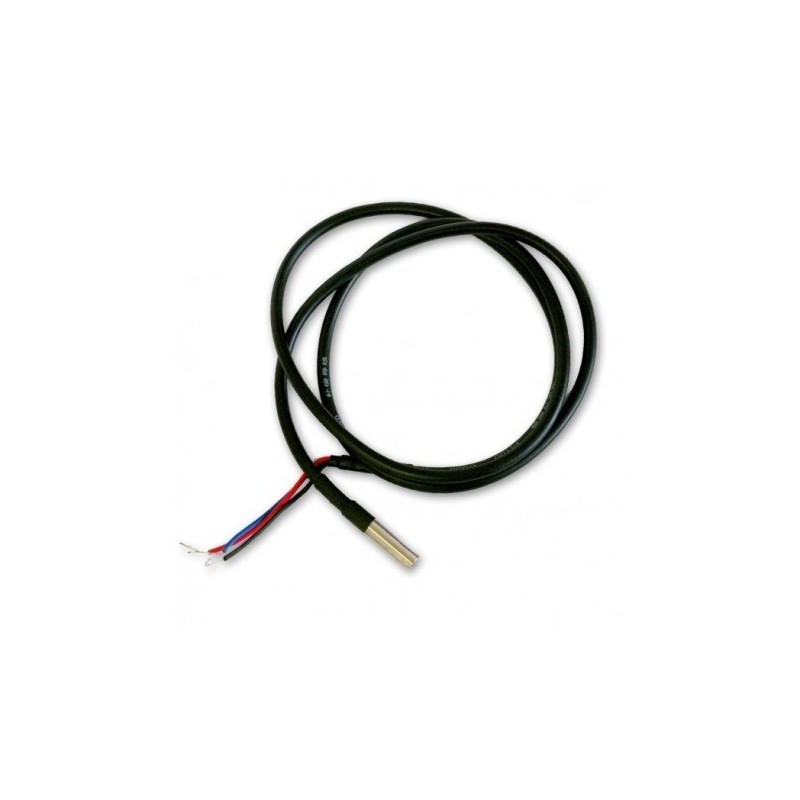

DALLAS temperature Sensor 1-Wire DS18B20 waterproof (1m)

• Temperature sensor 1-Wire waterproof

• Contains a temperature sensor DS18B20

• To measure the temperature of a liquid (ex: tank, pool, ...)

• Four wires - Red connects to a power supply 3-5,5 V, Black connects to ground and Blue (or Yellow) is given. The copper wire is soldered to the wire shielding

• Can be used with the sensors Fibaro FGBS-001 and FGK-101

 SPECIFICATIONS temperature Sensor 1-Wire DS18B20

• Power supply : 3 to 5.5 VDC

• Temperature range measurable : -55 to +125 °C

• Accuracy : +0.0625°C 12-bit, +0.125°C 11-bit, +0.25°C 10 bit and +0.5°C in 9-bit

• Conversion time : minimum (9-bit): 93.75 ms, maximum (12-bit): 750 ms

• Diameter of steel tube : 6mm by 30mm long

• Dimensions of the cable : 1m, 4 mm diameter
