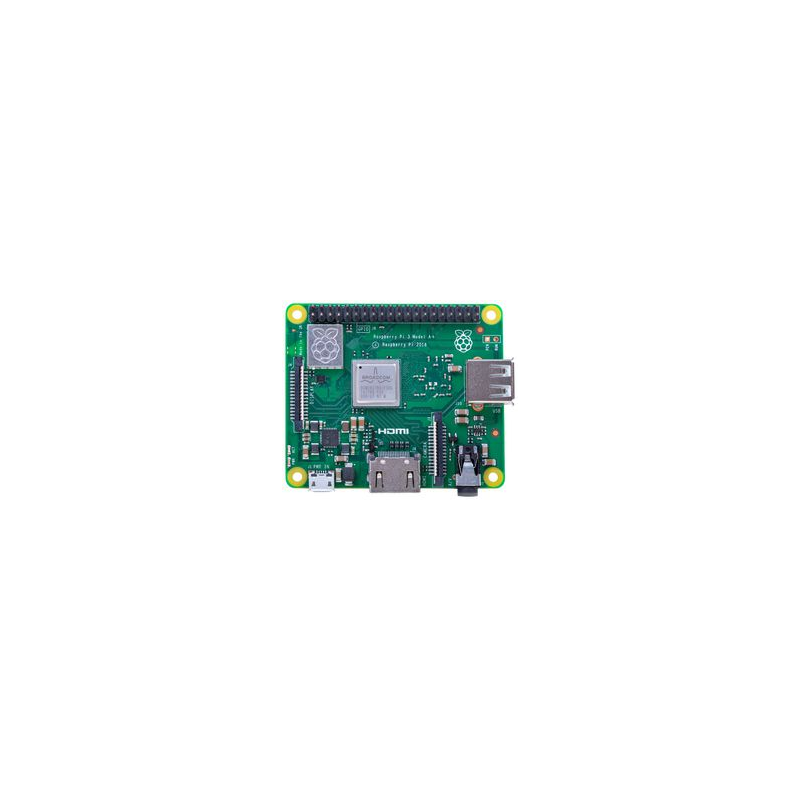

Raspberry Pi 3 Model A+ CPU 1.4Ghz

The Raspberry Pi 3 Model A+ is the latest product in the Raspberry Pi 3 line.

Like the Raspberry Pi 3 Model B+, it features a 64-bit quad core 1.4GHz processor, dual-band 2.4GHz and 5GHz wireless LAN, and Bluetooth 4.2/BLE.

The dual-band WLAN comes with modular compliance certification, allowing the board to be designed into finished products with significantly reduced WLAN compliance testing, improving cost and time-to-market on the market.

The Raspberry Pi 3 Model A+ has the same mechanical footprint as the Raspberry Pi 1 Model A+. Based on the Broadcom 2837 ARMv8 64bit Quad Core processor up from 900MHz (on the Pi2) to 1.2Ghz, the new generation RPi is a bit larger than the Pi2, faster and more powerful than its predecessors.

With improved power management, the Pi3 is able to support more powerful external USB devices and now includes built-in Wi-Fi and Bluetooth connectivity !

Technical specifications Raspberry Pi3 A+:

• Quad Core Broadcom BCM2837B0 Processor, Cortex-A53 64-bit SoC @ 1.4 GHz

• 512MB RAM

• BCM43143 Built-in Wi-Fi

• Built-in Bluetooth Low Energy (BLE)

• 1 USB2 ports

• Video and stereo output

• Micro SD card reader to load your operating system and store your data

• Micro USB power source, now supports up to 2.5A

• 1 HDMI port

• 1 MIPI ISD port

• 1 MIPI-CSI port

• Composite video and audio output

• 40-pin GPIO expansion port
