EUTONOMY R223 euFIX DIN RAIL adapter for Fibaro FGR-223 module with buttons

The euFIX R223 adapter is used to install the Fibaro® Roller Shutter FGR-223 module on a DIN TH35 type rail in the electrical panel.

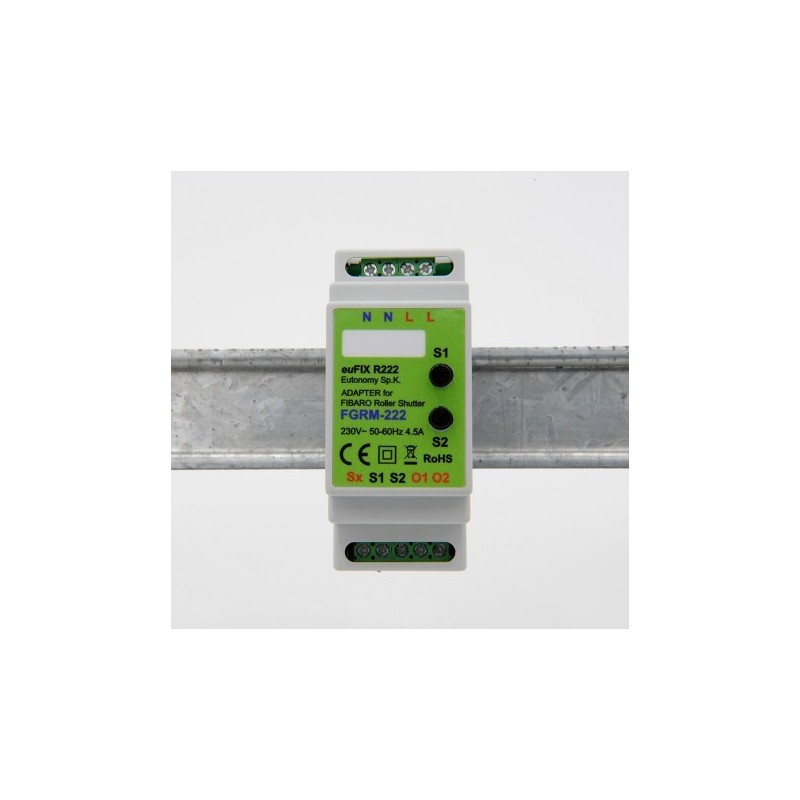

The euFIX R223 adapter consists of a housing and an electronic board, on which the FGR-223 module is mounted. The dimensions of the enclosure are suitable for a standard rail type DIN TH35/TS35.

The electronic board contains a set of screw terminals, where all the wires (power supply, input and output signals, control buttons) can be securely connected.

The front panel of the case contains two diagnostic micro-buttons S1 and S2, which can be used to control the module, register the module in the Z-Wave system or remove it from the system without opening the adapter case.

R223 features:

• Supply voltage: 230 V AC +/- 10%, 50-60Hz

• Load power: max 4.5A

• Dimensions: 34.8 x 87.3 x 64.7mm

• Width in TE units: 2 TE modules

• Conductor section of the wires: max. 2.5mm2

• Maximum length of wires connected to Sx, S1, S2 inputs: 20m

• Operating temperature: 0°C to +50°C

• Relative humidity: ≤90%, no condensation

• Guidelines:

  • LVD 2014/35/EC

  • RoHS 2011/65/EU
