Urmet 1722/83 WIFI / IP video door entry

WIFI /IP video door entry system for the home.

The Urmet video door entry system is easily installed either in IP by cable or in WIFI.

The Urmet video door entry system has a smartphone application to view visitors wherever you are.

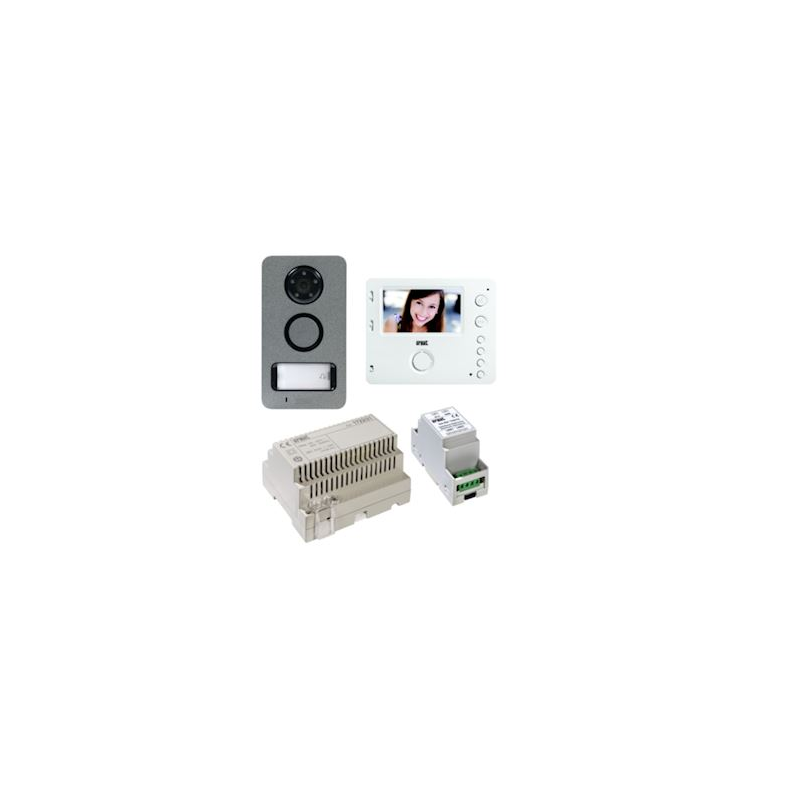

Kit consisting of:

• 1 hands-free color video monitor (Ref. URM 1722/88)
• 1 ZAMAC anti-vandal entrance panel
• 1 power supply (Ref. URM 1083/21)
• 1 bus coupler (Ref. URM 1722/112)

Control with Energeasy Connect:

Operation as an action/scenario launcher, or for transferring calls from the intercom to a Smartphone (available only on Android). It is essential to connect a Yokis key to the Energeasy Connect controller to ensure the operation of the system.

CALL TRANSFER option from intercom to smartphone:

o For the call transfer option, provide a CallMe Box call transfer module (Ref. URM 1722/58)
o Installation in the electrical panel
o Wifi connection or RJ45 Ethernet cable
o Transfer of calls directly, via the internet box, to a maximum of 4 smartphones (only on Android).
o Allows you to see, answer, refuse, command 1 door strike or 1 gate, launch up to 4 actions or scenarios.

Urmet video door entry features:

1 MIRO MONITOR + MOUNTING BRACKET:

• Hands-free in white ABS with glossy finish.

• 4.3'' (11 cm) color LCD screen.

• Metal bracket supplied for wall mounting with verticality adjustment.

• Fixing center distance 60 mm suitable for Placo round boxes.

• Surface mounting.

• Adjustment of ringtone level + mute with signalling.

• Brightness, contrast, color adjustment.

• 5 melodies to choose from for calls from the entrance panel or intercom.

• 2 access controls: door opening, motorized gate opening.

• 2 commands on dry contacts 50 mA/24 Vdc for connection of a Yokis E2BPP radio transmitter: for lighting, rolling shutters, departure or arrival scenarios.

• Intercommunication to two other monitors.

• CCTV function for displaying images from the entrance panel.

• 1 function LED: programming mode activated.

• 1 output for additional bell or wireless chime 43410 and 43305.

• Dimensions (HxWxD): 130 x 160 x 26 mm.

1 MIKRA CALL PLATE:

• External call module for 2-wire video installation.

• IP 44, IK 7. Surface mounting. Recessed mounting with the optional kit ref. 1122/60

• With sound unit with a power greater than 100 dB, color camera + high luminosity white leds and luminous call button.

• 1/3” CCD color camera with 2 mm lens. Viewing angle horizontal: 60°, vertical: 46°.

• Facade in gray zamac.

• Connection of exit buttons.

• Electric door lock opening control by 12 V voltage supplied, time delayable 0.3, 3, 6, 9 s.

• Motorized gate opening control by potential-free dry contact.

• Dimensions (HxWxD): 180 x 100 x 24 mm.

1 POWER:

• Power supply: 230V/34.5Vdc. Electronic protection by PTC.

• Can power a maximum of 1 plate, 4 monitors.

• 6-module DIN rail modular box.

1 2-WIRE BUS COUPLER:

• Allows connection of a 2-wire bus to the panel and a 2-wire bus to the main monitor and any secondary monitors.

• 2-module DIN rail modular box.

Accessories :

• Additional monitor ref. 1722/88.

• Call transfer module on smartphones ref. 1722/58.

• Power supply for call transfer module ref. 1083/24.

• Wireless call repeater ref. 43410.

• Zamak flush-mounting box for entrance panel ref. 1122/60.

• Brass flush-mounting box for entrance panel ref. 91970010.

• Steel flush-mounting box for entrance panel ref. 91970020.

• Flush-mounting box for Miro monitor ref. 1750/60.

• Table stand for Miro monitor ref. 1750/52.
