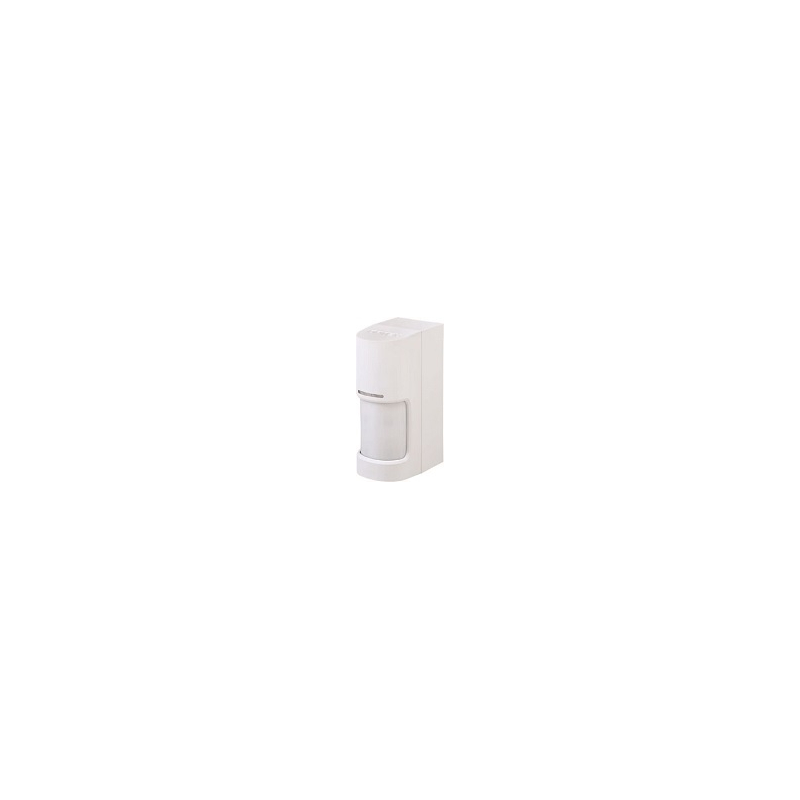

Optex WXI-RAM radio detector 180° outdoor 12m

In the WXI series, outdoor volumetric PIR detectors, with a range of 12m at 180 degrees, the WXI-RAM is the battery-powered model with anti-mask. With its 180° field of view and ability to adapt its settings to the environment around your premises, the WXI series will provide an effective intrusion detection sensor for new and existing security systems. The left and right alarm detection zones can be set independently at 2.5m, 3.5m, 6m, 8.5m and 12m.

180 degree detection and dual level detection

The WXI series features 180 degree detection coverage allowing a single sensor to cover a large area, such as a garden

front, a courtyard or a terrace. Dual level detection allows ignoring animals while detecting people.

Independent detection left and right

WXI outdoor motion sensors provide two detection zones, left and right, which can be set independently. For example, the right zone can be set to 3.5m while the left zone is set to 8.5m. A unique masking mechanism and flexible sensitivity adjustment make it easy to avoid potential nuisance alarms.

Wireless flexibility and safety the anti-mask function

The battery-powered WXI-RAM can be easily added to most wireless alarm systems and provides the advantage of quickly and effectively protecting the boundaries of premises and any exterior building. Most wireless transmitters fit into the back box of the sensor and can power the WXI-RAM. In addition, the anti-masking function will detect if objects have covered the lens and send a signal to the alarm center.

Requires an alarm brand radio transmitter to operate

Optex WXI-RAM features :

• Mounting height between 0.8 m and 1.20 m

• Volumetric detection with digital analysis, independent left/right

• Immunity to environment and small animals

• IP55 protection rating, 2 year warranty

• Power supply 3 to 3.6 Vdc lithium battery (not supplied) requires compartment BH-01
