Ajax OCBRIDEPLUS alarm - Universal module for wired central
€65.09
€72.32
Save 10%VAT included
Ajax alarm OCBRIDEPLUS universal module for wired central
Garanties sécurité(à modifier dans le module "Réassurance")
Politique de livraison(à modifier dans le module "Réassurance")
Politique retours(à modifier dans le module "Réassurance")
Ajax alarm OCBRIDEPLUS universal module for wired central

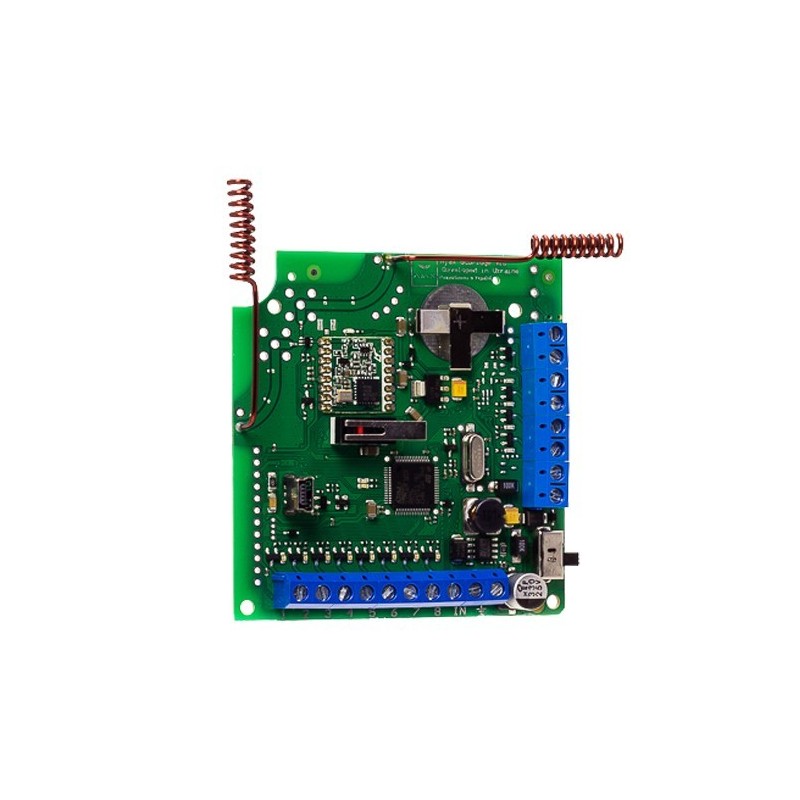

The AJ-OCBRIDGEPLUS peripheral is an integration module for Ajax peripherals (motion detectors, magnetic contacts, remote controls, etc.) with wired central panels from other manufacturers.
It is possible to add up to 100 wireless Ajax devices to this module thanks to the protocol via the Jeweler 868 MHz radio.
For communication with the wired central panel, the module has 8 different zones in which the 100 different peripherals will be grouped and linked. which will send the Ajax devices information to the wired system.
Communication between the AJ-OCBRIDGEPLUS module and Ajax devices has a maximum range of 2 km in open terrain without obstacles. To avoid any alteration of the module, it is equipped with a front and rear tamper.
The integration module is responsible for communicating the status of Ajax devices to the central wired panel via its 8 configurable zones.
Communication between the AJ-OCBRIDGEPLUS module and Ajax devices has a maximum range of 2 km in open terrain without obstacles. To avoid any alteration of the module, it is equipped with a front and rear tamper.
The integration module is responsible for communicating the status of Ajax devices to the central wired panel via its 8 configurable zones.
Additionally, it includes 5 additional service zones that report back tamper, forward tamper, connection loss, inhibition attempt and low battery.
To add the different Ajax peripherals to the module, use the specific "Ajax OcBridge Configurator" software.
To add the different Ajax peripherals to the module, use the specific "Ajax OcBridge Configurator" software.
For its configuration it is connected by USB to the PC and for its operation it requires a power supply between 8 and 14 V DC.
Features Ajax OCBRIDEPLUS:
Internal safety tamper anti-opening at the front and at the back
Module inputs Up to 100 Ajax devices to distribute among the 8 output zones
Output module 8 output zones to connect to the wiring panel and 5 special zones: forward tamper, reverse tamper, communication loss, low battery and inhibition attempt
Transmission distance Up to 2 km in free space
Transmission frequency 868 MHz Jeweler
Power supply USB / DC 8-14 V / 115 mA max.
Temp. operation -20º C ~ + 50º C
Dimensions 95 (H) x 92 (W) x 18 (D) mm
OCBRIDEPLUS
2 Items
Data sheet
- Security
- Expansion Module
- Type
- Wireless
Specific References
