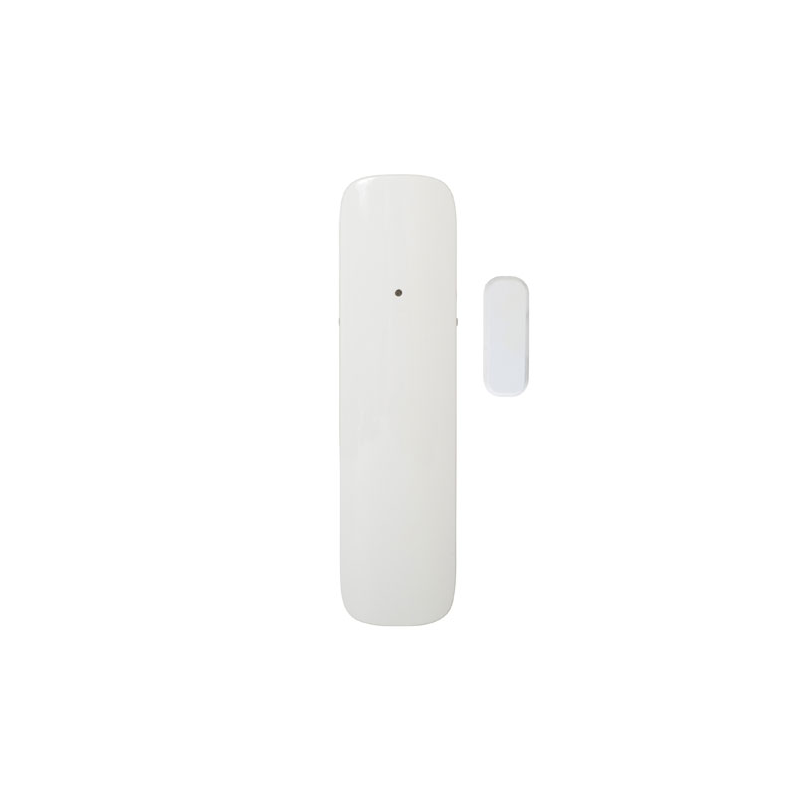

Vanderbilt WMAG radio opening contact

The WMAG is a thin and discreet radio magnetic contact supported by the SPC system.

The magnet can be placed to the right or to the left of the high precision Hall effect sensors.

For quick installation, the contact can be surface mounted using heavy-duty adhesive tape.

Parameters such as monitoring time and LED operation can be configured.

Requires the installation of a radio receiver in the control unit.

Characteristics :

Battery/Power:

• Power supply WMAG: 2 x EnergizerR L92 AAA batteries, WMAG-I: CR123A

• Frequency 868-869 MHz

• Battery life 5 years

• Open space range > 500 m

• Current Draw Sleep Mode ~ 4 μA, Receive Mode ~ 24 mA, Transmit Mode ~ 45 mA

• Transmit Power ~14dBm

• APS Automatic power saving Yes

Intrusion detection properties:

• Detection method WMAG: 2 x Hall effect sensors (right and left), WMAG-I: 1 x reed switch

• Monitoring time: 7 min by default (programmable between 1 and 30 min)

• Transmission of events: Alarm, tamper, monitoring, low battery
