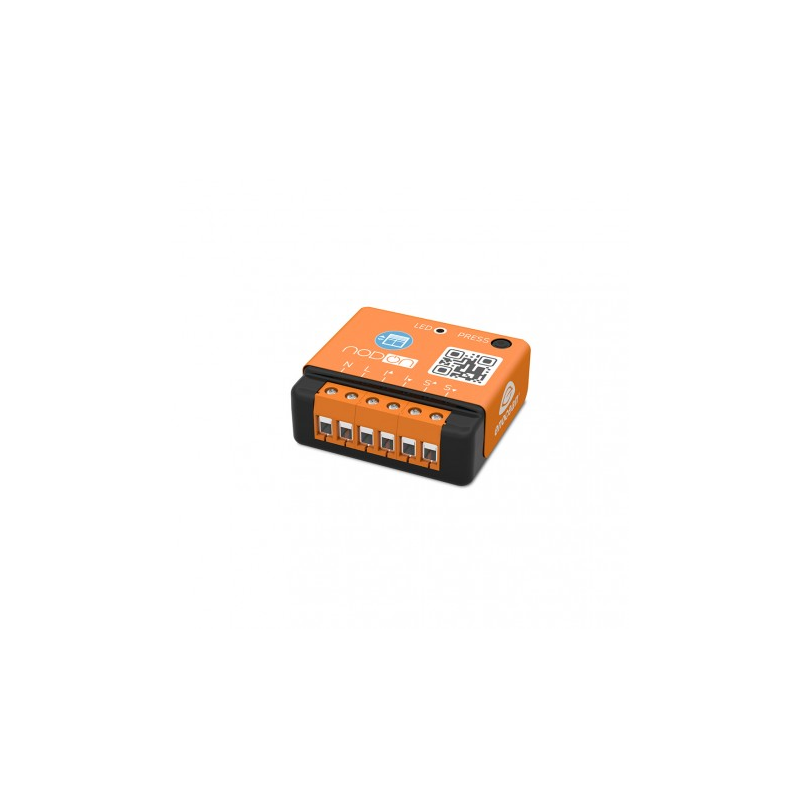

Nodon SIN-2-RS-01 - EnOcean roller shutter module

The Nodon EnOcean SIN-2-RS-01 recessed module enables radio automation of your wired roller shutters

Nodon SIN-2-RS-01 Features:

• Order a roller shutter or awning remotely

• Installs behind an existing switch

• Up/Down/Stop Function

• Auto calibration

• Small, discreet and aesthetically pleasing

• Ease of use and installation

• EnOcean Technology

• Incorporates Quickmove technology

• Power Supply: 230V AC +/-10% - 50Hz

• Switching capacity: 230V AC – 10A // 30V DC – 10A

• Maximum motor power: 150 W

• Intrinsic consumption: <1W

• Operating Temperature – 0°C to 40°C

• EnOcean® Radio Protocol: 868.3MHz Bidirectional - D2-05-00

• Range: 30m indoors

• 2 analog inputs for existing wired switch(s)

• Dimensions – 40*44*16.9mm

• 2-year warranty

• Standards:

  • EN 60669-1: 1999+A1:02+A2:08 – EN 60669-2-1: 2004+A1: 09+A12: 10

  • EN301489-01 V2.1.1 – EN301489-03 V2.1.1

  • EN300220-2 V3.1.1

  • EN62479: 2010

  • 2012/19/EC WEEE Directive

  • 2006/95/EC

  • 2014/35/EU
