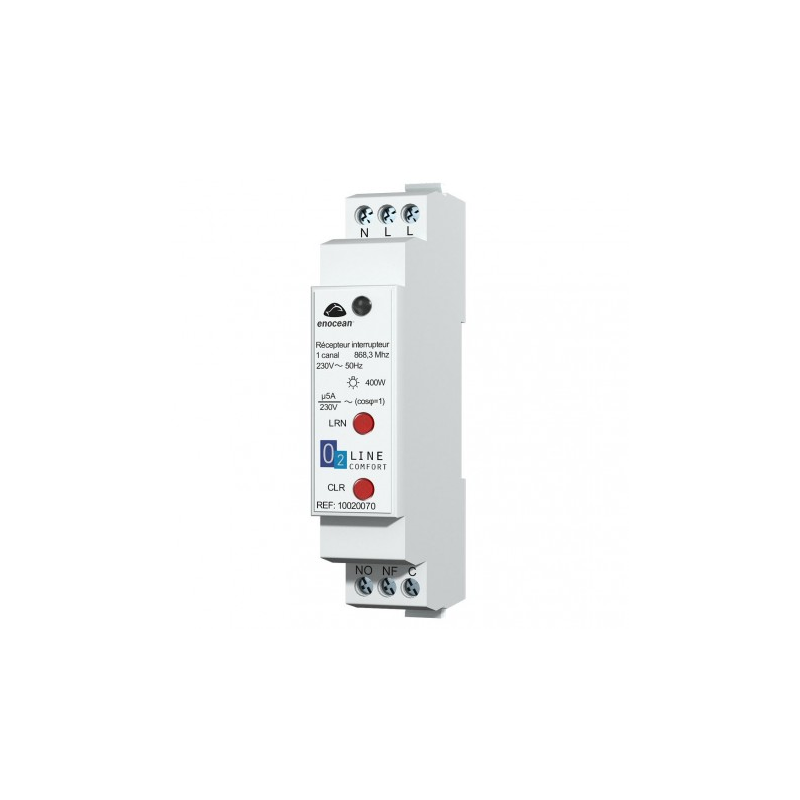

Trio2sys EnOcean Din rail switch receiver

The Trios2Sys radio receiver is used to switch various 230V load electrical devices, such as incandescent lamps, halogen lamps, electronic ballasts, fans, from an Enocean radio transmitter without batteries and without wires.

The Trios2Sys radio receiver is able to interpret orders from 32 Enocean radio transmitters, such as switches, window or door contacts, key cards, door handles, presence detectors, dry contacts. 2 channels can be used to manage several electrical sources independently.

Characteristics :

• Antenna: internal

• Power supply: 230V~ / 50Hz

• Transmission frequency: 868.3MHz

• Output load (by relay):

  • Resistive load: 1100W (1100VA if Cosφ=1)

  • Halogen/Incandescent: 400W

  • Inductive: 150W with cosφ=0.4-0.6

• Inputs: 2 buttons LRN (receiver in learning mode) and CLR (reset to 0)

• Number of associable transmitters: Up to 32 transmitters and magnetic window contacts

• Dimensions: 17mmx90mmx57mm (1 DIN rail slot)

• Operating temperature: -10 up to +45°C

• Humidity: 0% to 95% relative humidity (non-condensing)

• Range in buildings:

  • Masonry: 20m, through 3 walls maximum

  • Reinforced concrete: 10m, through 1 wall/ceiling maximum

  • Placoplatre / Wood: 30m, through a maximum of 5 walls
