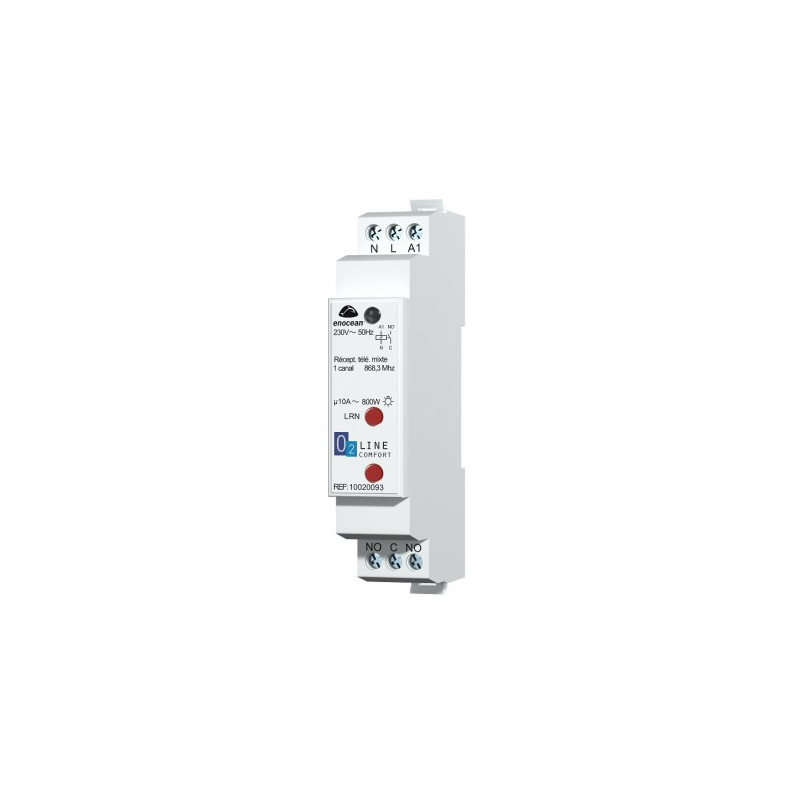

Trio2sys EnOcean DIN rail remote control switch

The modular 1-channel mixed impulse receiver is used to receive radio signals from transmitters

switch or sensors and the connection of wired push buttons while increasing the range between the transmitters and the other O2line receivers if necessary.

It allows the switching of resistive load, ferromagnetic and electronic lamps, power contactor or small motor.

Associated as a sensor with BMS products, it is possible to obtain an acknowledgment at each change of state or access advanced functions such as the radio test function.

Prior to use, transmitters must be bound to a receiver. Each sensor or transmitter can control an unlimited number of receivers.

Characteristics :

• Transmit frequency 868.3MHz

• EnOcean Equipment Profile (EEP) D2-01-01

• Power supply 230V AC / 50Hz

• Output load

  • max μ10A/2300VA resistive (cos =1),

  • 800W incandescent/halogen,

  • 300W inductive (cos =0.4 to 0.6),

  • 500W/800W ELV halogen,

  • 600W fluorescent

• White ABS color

• Operating temperature -10 up to +45°C

• Relative air humidity from 0% to 75% (non-condensing)

• Product Dimensions 17.5x97.4x66.4mm
