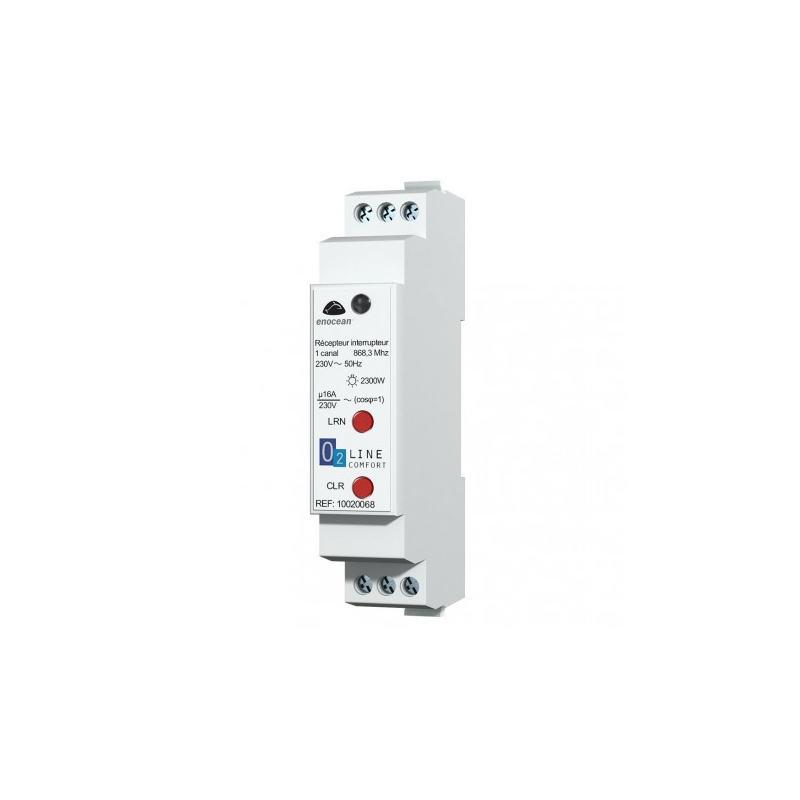

Trio2sys EnOcean 16A DIN rail switch receiver

The 1-channel radio receiver is used to switch various 230V load electrical appliances, such as incandescent lamps, lamps

halogens, electronic ballasts, fans, from an EnOcean radio transmitter without batteries and without wires.

The receiver is able to interpret orders from 32 transmitters such as EnOcean radio switches, window contacts, key cards, door handles,

door, presence detectors, dry contacts.

The orders (open/closed) can be chosen according to the wiring for use for lighting (open) or heating (closed).

RADIO TRANSMITTER MODE:

Each assigned transmitter can be used to change the status of the receiver, one transmitter can be turned on and off

with another and create back and forth with ease, without pulling extra wire

WINDOW CONTACT MODE:

If at least one of the contacts is open, the receiver status is ON. If the other contacts are closed, the receiver is OFF. Window contacts transmit a signal about their status every 15 minutes, approximately 60 minutes after receiving the last signal, the receiver considers the contact closed

EASY RECEIVER LEARNING

1 – Place the receiver in learning mode by pressing the LRN button. the

receiver confirms by emitting a flashing light.

2 – Associate the transmitter, the receiver confirms learning with another flash.

3 – Repeat phase 2 on the other transmitters, until the last one, and press the LRN key

to complete the learning.

Characteristics :

• Internal Antenna

• Power supply 230V AC +- 10% 50Hz

• Output load Load

  • max μ16A 3300VA resistive (cos=1)

  • 2300W Tungsten (incandescent/halogen lamp)

  • 800W inductive (cos=0.4 to 0.6)

  • 1500W/2300WTBT halogen

  • 1000W ballast with cos=0.4-0.6 (fluorescent lamp)

• Frequency 868.3MHz

• Inputs 2 buttons LRN (receiver in learning mode) and CLR (reset to 0)

• Number of assignable transmitters Up to 32 transmitters and magnetic window contacts

• Module size 17.5x97.4x57.8mm

• Operating temperature -10 up to +45°C

• Humidity 0% up to 95% relative humidity, no condensation
