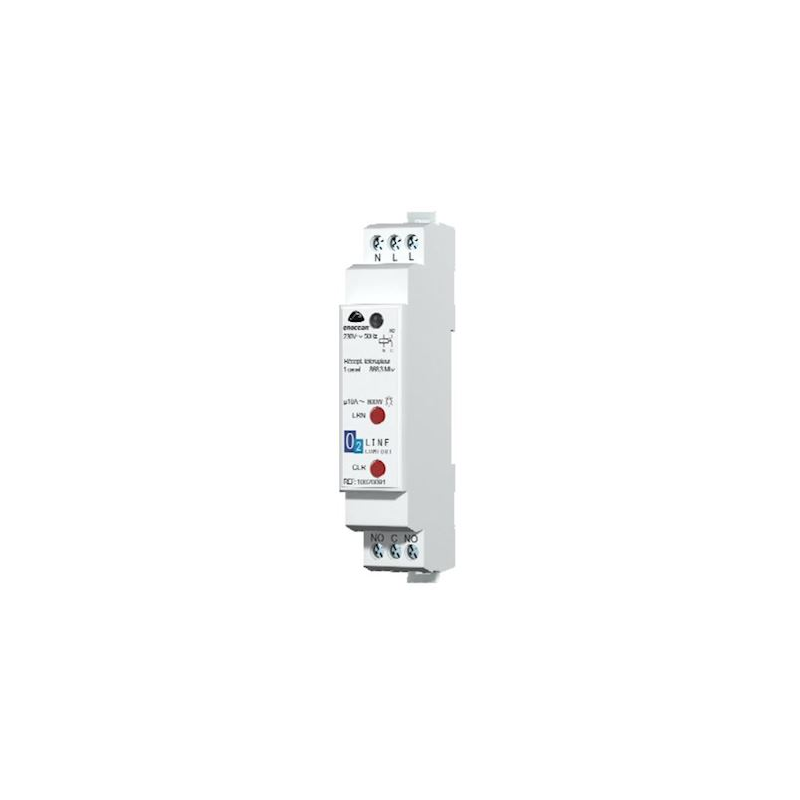

Trio2sys EnOcean DIN rail remote control switch

The modular 1-channel teleswitch receiver is used to receive radio signals from switch transmitters or sensors while increasing if

need the range between the transmitters and the other O2line receivers.

Associated as a sensor with BMS products, it is possible to obtain an acknowledgment at each change of state or access advanced functions such as the radio test function. It allows the switching of resistive load, ferromagnetic and electronic lamps, power contactor or small motor.

Prior to use, transmitters must be bound to a receiver. Each sensor or transmitter can control an unlimited number of receivers.

TIMER MODE: Receiver status changes

automatically at the end of the time interval

user defined.

REMOTE CONTROL MODE: each press of the switches inverts the state of the receiver.

Characteristics :

• Transmit frequency 868.3MHz

• EnOcean Equipment Profile (EEP) D2-01-01

• Power supply 230V AC / 50Hz

  • Output load

  • max μ10A/2300VA resistive (cos =1)

  • 800W incandescent/halogen,

  • 300W inductive (cos =0.4 to 0.6)

  • 500W/800W ELV halogen

  • 600W fluorescent

• White ABS color

• Operating temperature -10 up to +45°C

• Relative air humidity from 0% to 75% (non-condensing)

• Product Dimensions 17.5x97.4x66.4mm
