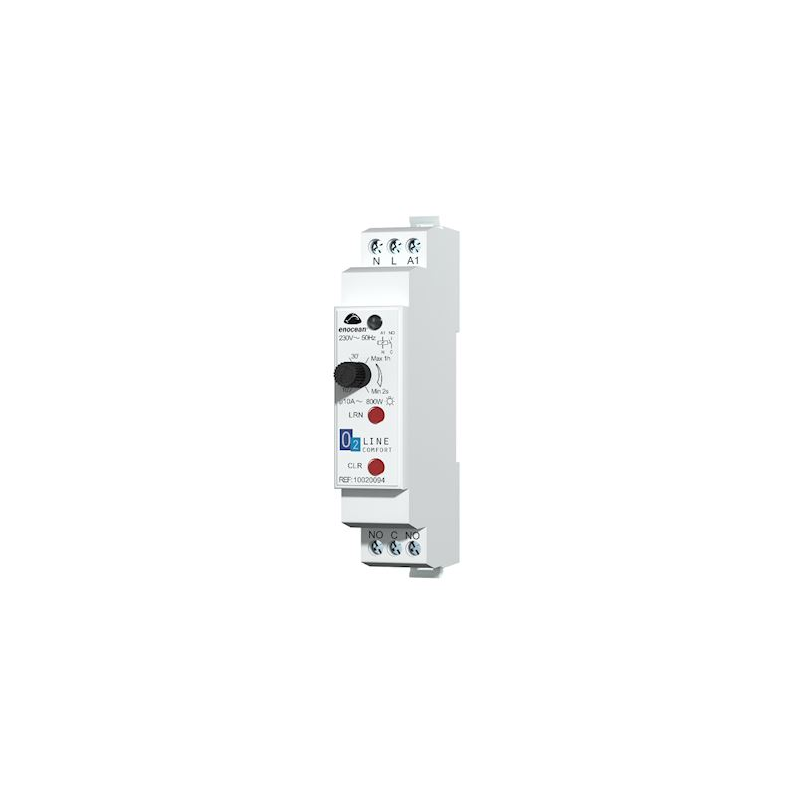

Trio2sys EnOcean DIN rail radio receivers

The modular 1-channel mixed remote control receiver is used to receive radio signals from switch transmitters or sensors and to connect wired push buttons while increasing the range between the transmitters and the other O2line receivers if necessary.

It allows the switching of resistive load, ferromagnetic and electronic lamps, power contactor or small motor.

Associated as a sensor with BMS products, it is possible to obtain an acknowledgment at each change of state or access advanced functions such as the radio test function.

Prior to use, transmitters must be bound to a receiver. Each sensor or transmitter can control an unlimited number of receivers.

TIMER MODE:

the state of the receiver changes automatically after the time interval defined by the user.

REMOTE CONTROL MODE:

each press of switches as well as wired push buttons
connected inverts the state of the receiver.

Characteristics :

• Transmit frequency 868.3MHz

• EnOcean Equipment Profile (EEP) D2-01-01

• Power supply 230V AC / 50Hz

• Output load

  • max μ10A/2300VA resistive (cos =1)

  • 800W incandescent/halogen

  • 300W inductive (cos =0.4 to 0.6)

  • 500W/800W ELV halogen

  • 600W fluorescent

• White ABS color

• Operating temperature -10 up to +45°C

• Relative air humidity from 0% to 75% (non-condensing)

• Product Dimensions 17.5x97.4x66.4mm
