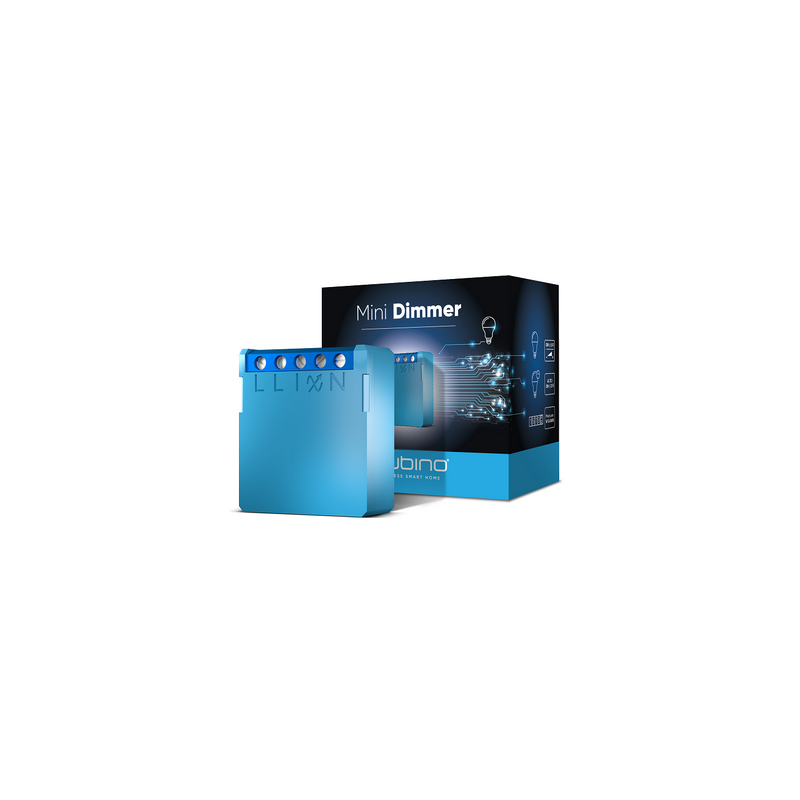

Qubino ZMNHHD1 Z-Wave Plus consumption meter dimmer module

With the Qubino ZMNHHD1 module existing lighting installations can be integrated into a Z-Wave network.

Thus, the connected lamps can still be controlled and adjusted with the existing wall switch, but also via remote control, smartphone or home automation box.

Thanks to its small size, the Qubino ZMNHHD1 module can be integrated into a traditional flush-mounting box.

The Qubino module can dim all dimmable bulbs: Incandescent, Halogen, Led, Fluorescent

The Qubino ZMNHHD1 module can operate without a neutral

Features Qubino ZMNHHD1:

• 2 wired and 3 wired system supported

• Energy measurement function

• Power supply: 110 - 240 VAC, 50/60Hz; 24-30 VDC only for inclusion and exclusion

• Output circuit power: 200W (240 VAC); 90W (110 VAC)

• Trailing edge dimmer - MOSFET

• Working temperature: -10°C~+40°C

• Wireless Technology: Z-Wave Plus

• S2 Security

• SmartStart

• Dimensions: 38 x 33 x 15.5mm
