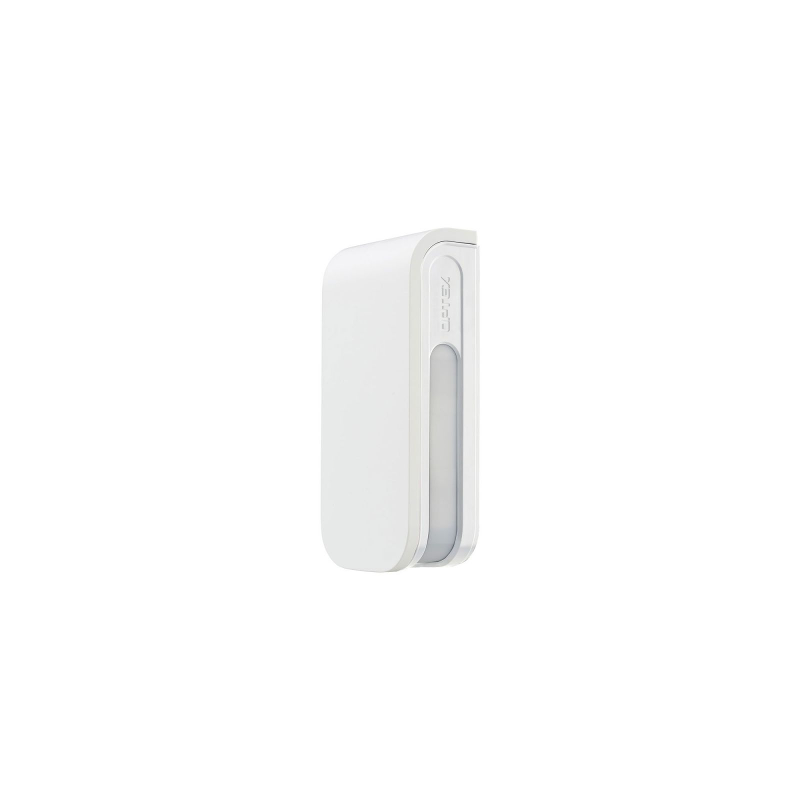

Optex BXS-ST white Shield - Wired outdoor curtain alarm detector 2*12m
€139.32
VAT included
Optex BXS-ST white Shield wired alarm detector outdoor curtains 2*12m
Dual Wired Outdoor IR
Garanties sécurité(à modifier dans le module "Réassurance")
Politique de livraison(à modifier dans le module "Réassurance")
Politique retours(à modifier dans le module "Réassurance")
Optex BXS-ST white Shield wired alarm detector outdoor curtains 2*12m
The BX Shield series is a range of outdoor motion detectors with curtain detection with a range of up to 12 m on each side.
The BX Shield series is ideal for protecting the immediate surroundings of your home or office. The detectors have four passive IRs, two on each side.
For total control, the right and left detection zones can be configured completely independently of each other.
The BXS-ST is the standard wired model (bicolor/white).
The detection range, sensitivity and alarm output of the BX Shield series can be configured separately on the left and on the right.
The detection distance can be set to 2.5m, 3.5m, 6m, 8.5m or 12m on each side.
Sensitivity can be set from low to extremely high, with the ability to detect a temperature difference of just 1 degree Celsius.
The detector can be easily connected to a fixed CCTV or PTZ camera to send visual alarms when unauthorized persons enter the immediate area surrounding the premises.
The BX Shield series has been designed to simplify the work of the installer.
A 90 degree unlocking system provides easy access to the installation area, a spirit level helps fix the detector upright and important areas are colored blue.
Black and silver covers are available as options and allow this outdoor detector to blend easily into the environment.
Features Optex BXS-ST:
-
Installation height 0.8m to 1.2m
-
Consumption 31mA
-
Double conductive shield
-
Temperature compensated
-
Adjusting the detection range
-
Power supply: 9.5 to 18 Vdc, consumption 31 mA
-
Output by NO and NC dry contacts
-
Installation height: 0.8 to 1.2 m
-
Dimensions: W 92.8 x H 199.7 x D 52.7 mm
-
Operation: -30°C to + 60°C
- IP55
-
Warranty: 5 years.
- White colour
BXS-ST-W
5 Items
Data sheet
- Security
- Detector outdoor
- Type
- Wired
Specific References
- EAN13
- 788924501918
