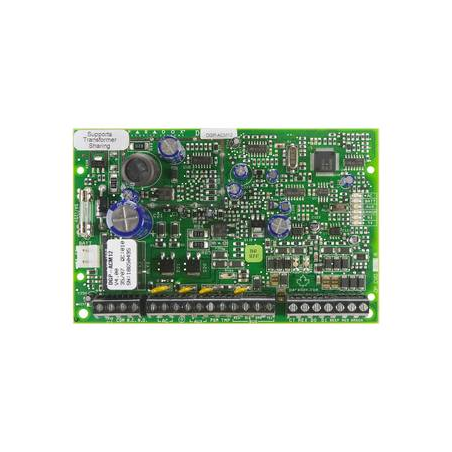

Paradox ACM12 - Access control module

The Paradox ACM12 access control module is designed for use with the Paradox EVO system.

The Paradox ACM12 access control module allows you to manage access to a door, via card, pin or both, provide door forced and door open detection and arm/disarm functions.

The Paradox ACM12 access control module supports full offline functionality, which stores the entire database in memory when panel connection is lost and allows full synchronization when restored.

The Paradox ACM12 access control module supports one reader IN and one reader OUT if you are using 4-wire Paradox readers, or one reader IN only if you are using the 26-bit 7-wire Wiegand Reader. The ACM12 also supports a REX, a door contact which can be an alarm zone and a door interlock device.

With fast response up to 999 users, simple and minimal programming, and easy installation, the ACM12 is designed to provide
you with a reliable and professional access solution.

Paradox ACM12 access control module characteristics:

• User capacity 999

• Door unlock schedules 4 (total of 8 periods)

• User schedules Capacity 32

• 15 user security levels

• Power 16 VAC, 20 VA

• Auxiliary output 12 Vdc, 600 mA, 1A fuseless shutdown

• 12 Vdc battery, Gel Cell. Connection protected with 5A fuse

• Form C door release relay rated at 5A / 28 Vdc

• 50mA PGM Output Preset Definitions

• Device Connections Two 4-wire Paradox readers or one 7-wire 26-bit Wiegand reader, door contact,

• REX device, sabotage

• Manual release negative trigger input

• Control panel compatibility EVOHD Control Panel V4.5 and above

• EVO192 V4.5 and higher control panel

• Metal box (optional) Minimum 20 x 25.5 x 7.6 cm

• (8 x 10 x 3 in) metal box

• Dimensions 14 x 9.2 x 2.5 cm (5.5 x 3.6 x 1 inch)
