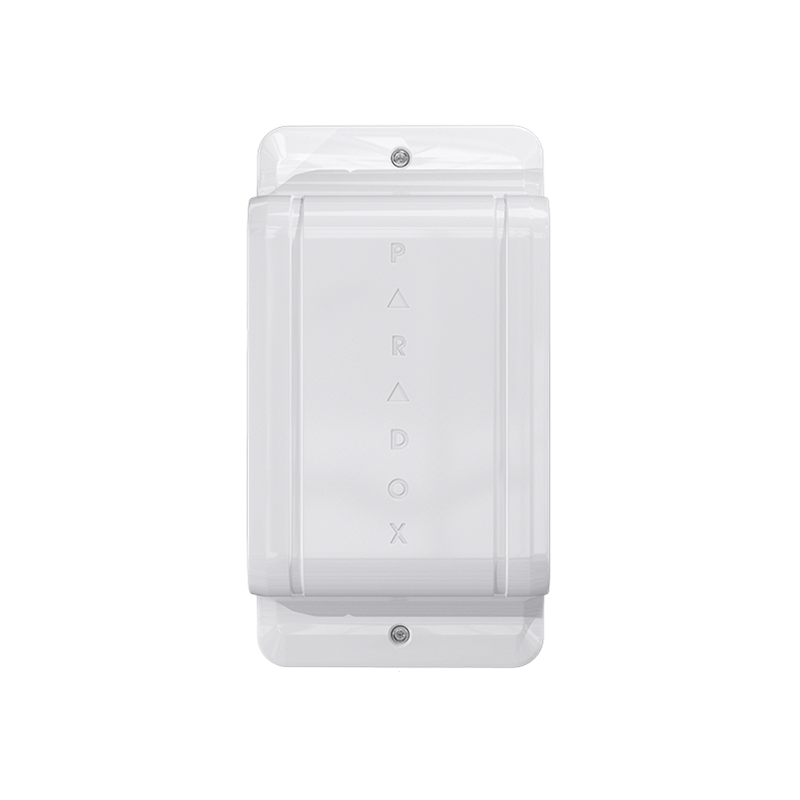

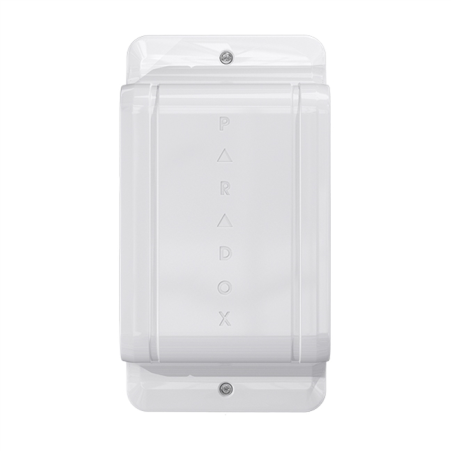

Paradox NV780MX wired motion detector 12*12m

The Paradox NV780MX wired motion detector is designed to provide a pre-entry protection solution while keeping the perimeter free of movement without generating false alarms.

The NV780M Series provides early warning detection before intruder entry, wall and window protection and offers the industry's best masking detection.

The Paradox NV780MX Motion Detector provides a pre-entry protection solution while keeping the perimeter free of movement, designed to protect exterior/interior walls and doors or windows.

The NV780M rugged indoor/outdoor detector features two side-by-side dual passive infrared detectors (right and left view), independent of each other with separate active IR anti-mask detection for each side. The optics are specially designed to provide multiple narrow beams for excellent detection covering up to 12m (40ft) on each side.

Range adjustment is done by adjusting the angle of view of the downward-pointing beams (moving them up and down). Detectors are configurable to report as a single unit (two side detectors reporting to a single zone output) or as dual units (each side reporting to a separate zone).

NV780MX Paradox motion detector features:

• Low-noise 4x rectangular dual-element sensor

• 2nd Generation Lens, Flat, 2x Dual Beam, 1.7" Focal Point, Long Range, Narrow Beam Fresnel Lens

• APSP digital processing / digital temperature compensation

• Boot time 25 seconds

• Detection speed 0.2 m / sec. - 4m/sec. (0.6 ft/s - 13.1 ft/sec.)

• Power input 9 Vdc to 15 Vdc

• Current Consumption Typical/standby: 37mA, Max: 80mA

• Two-way coverage, independent, 2 x 3m to 12m (10ft to 39ft) at 1.5m / 4.9ft high

• PET Immunity Up to 40 kg (90 lb) - minimum 1.5 m / 4.9 ft installation height

• Anti-mask active IR detection to block 10cm up to 30cm and liquid spray

• Alarm indicator 2x red LED for 3 seconds + buzzer

• 2x solid state alarm output, NC, 150mA.

• Tamper Switch NC28 Vdc, 0.15A

• Operating Temperature -35°C to +50°C / -31°F to +122°F

• Humidity 95% max.

• Dimensions 21cm x 11cm x 7cm

• RF Immunity Complies with EN 50130-4: 10V/m 80 MHz to 2.7 GHz

• Standards EN 50131-2-2, degree of safety 2,

• BUS connection
