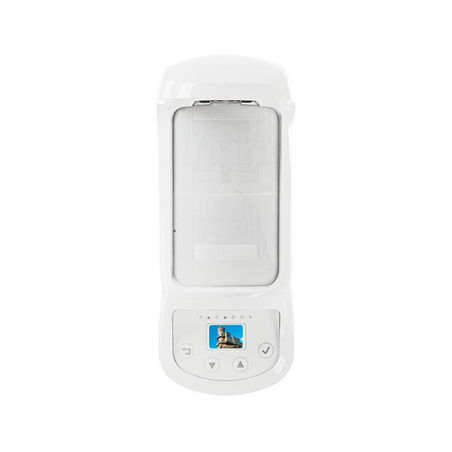

Paradox NVX80 wired motion detector dual anti-mask technology

Premium motion sensor with anti-mask and SeeTrue technology for indoor/outdoor use

The Paradox NVX80 motion detector is a category 3 dual detector, specially designed to provide high security, indoors and outdoors.

The Paradox NVX80 motion detector combines Paradox's SeeTrue™ technology with 8 detection channels: 4 forward infrared channels, 2 microwave channels and 2 dedicated anti-creep detectors, all managed by sophisticated detection algorithms.

The Paradox NVX80 Motion Detector provides an exceptional level of detection, eliminating routine and local interference such as windswept plants, small animals and glare.

Thus, it minimizes the number of false alarms.

SeeTrue™ technology greatly increases the NVX80's ability to detect intruders attempting to trick security systems.
detection by camouflage (thick coats, cardboard boxes or umbrellas).

In addition, the NVX80's anti-masking function can also detect actions aimed at blinding it.

It will quickly detect the placement of an object in front of the detector or the spraying of a clear varnish on its lens.

The Paradox NVV80 motion detector is easy to install and program, with its full-color OLED display and 4-button interface. The installer thus has an intuitive system for configuring and testing the device.
The NVX80 detector is compatible with Paradox's EVO and Spectra security systems to provide complete protection for any secure location.

NVX80 Paradox motion detector features:

• SeeTrue™ Indoor use, two levels of 'safety' and

• 'sterile', up to 12 m (36 ft)

• Double anti-mask

• To be selected: 1) Infrared active: Proximity and

• blocking conforming to EN50131 Grade 3 for

• all materials and liquids, with internal levels

• or outdoor;

• 2) Active microwaves for proximity detection

• 16 m (52 ft) coverage over 90º with anti-creep detection

• Installation height 2.5 to 3 m (8 to 10 ft)

• Consumption (in 12 V) Normal 80 mA, max. 100mA

• Outputs Relay 1: 1 A 24 VDC C-type

• Relays 2 and 3: 150 mA / 24 VDC A-type

• OLED display, 16-bit color, 96 x 64 pixels

• Dimensions and weight 9.8 cm x 22.9 cm x 9.2 cm (3.8 in x 9 in x 3.6 in)

• 520g (1.1lbs)

• Double Sabotage: Lid and Wall

• RF Immunity 10 V/m up to 2.7 GHz

• Operating temperature -35 to 60 ºC (-31 to 140 ºF)

• Paradox EVO connection bus, 4 wires

• Certification EN 50131-2-4 Category 3 Class IV

• ASA construction materials, UV resistant

• Accessories All-Weather Cover, Swivel Bracket

• Interactive programming by 4 buttons via the graphic display of

• menus or via the EVO bus

• Infrared

• Infrared forward: 2 quad sensors in

• interlaced configuration

• Anri-crawling infrared: 1 quad sensor in

• interlaced configuration

• Microwave Dual output, 10.5 GHz

• paradox.com

• TNVX80-E9M rev03. Printed in Canada 02/2015.

• Specifications subject to change without notice. US, Canadian and international patents may apply. ENVY Series and Paradox are trademarks or registered trademarks of Paradox Security Systems (Bahamas)

• ltd. or its affiliates in Canada, the United States or other countries. © 2015 Paradox Security Systems Ltd. All rights reserved.
