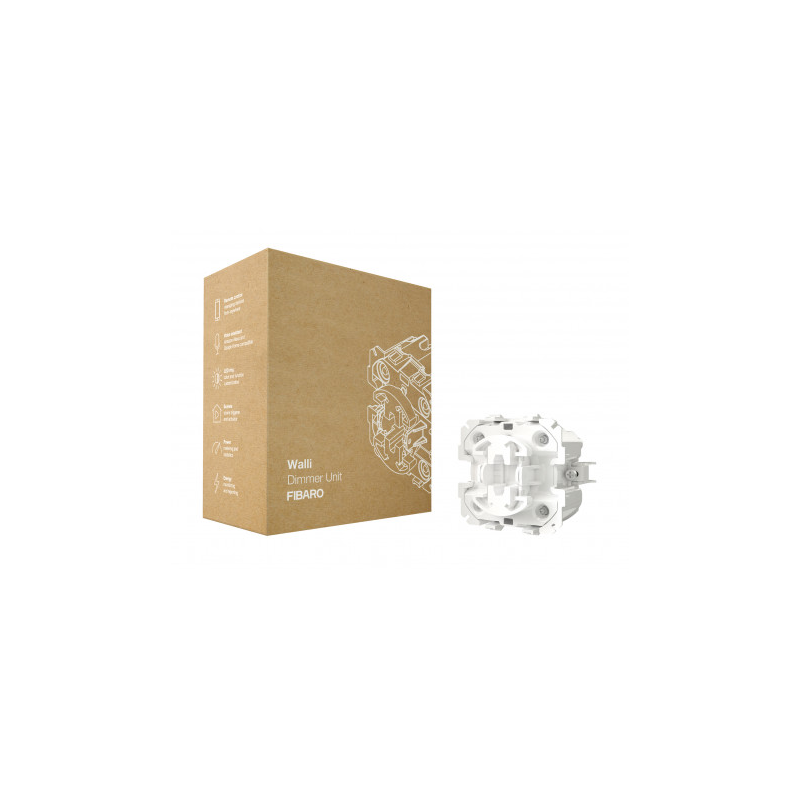

Fibaro FG-WDEU111-AS-8001 Z-Wave Plus dimmer switch mechanism Fibaro Walli Dimmer

The FIBARO Walli Switch Dimmer is an intelligent light dimmer with integrated light switch.

The FIBARO Walli Switch Dimmer mechanism works with commercially available lighting sources such as: LEDs, compact lamps, traditional bulbs and halogen lamps.

The FIBARO Walli Switch Dimmer is equipped with automatic calibration and active power and energy measurement functions.

Switch delivered naked without finishing frame or button. You can choose the finish you want from the compatible brands thanks to the optional adapters (see Accessories tab).

Features Fibaro FG-WDEU111-AS-8001 Z-Wave Plus Dimmer dimmer switch mechanism:

• Power supply: 110-230V 50/60Hz

• Rated charging current:

  • Resistive: incandescent and halogen 0.22-1.52A (50-350W)

  • Capacitive resistance: fluorescent tube lamp (compact / electronic ballast), electronic transformer, LED 0.22-1.3A (30-300VA)

  • Resistive-inductive: ferromagnetic transformers 0.22-1.3A (30-300VA)

  • With FIBARO Bypass 2: fluorescent or LED tube lamp (power factor> 0.5) 0.022-0.22A (5-50W)

• Radio frequency: 868.0–868.6 MHz

• Range: up to 40m inside (depending on terrain and building structure)

• Transmit power: +6dBm

• Operating temperature: 0–35°C

• Ambient humidity: 10–95% RH non-condensing

• For installation in boxes: Ø = 60mm, depth ≥ 40mm

• Dimensions (H x W x D): 86 x 86 x 51mm
