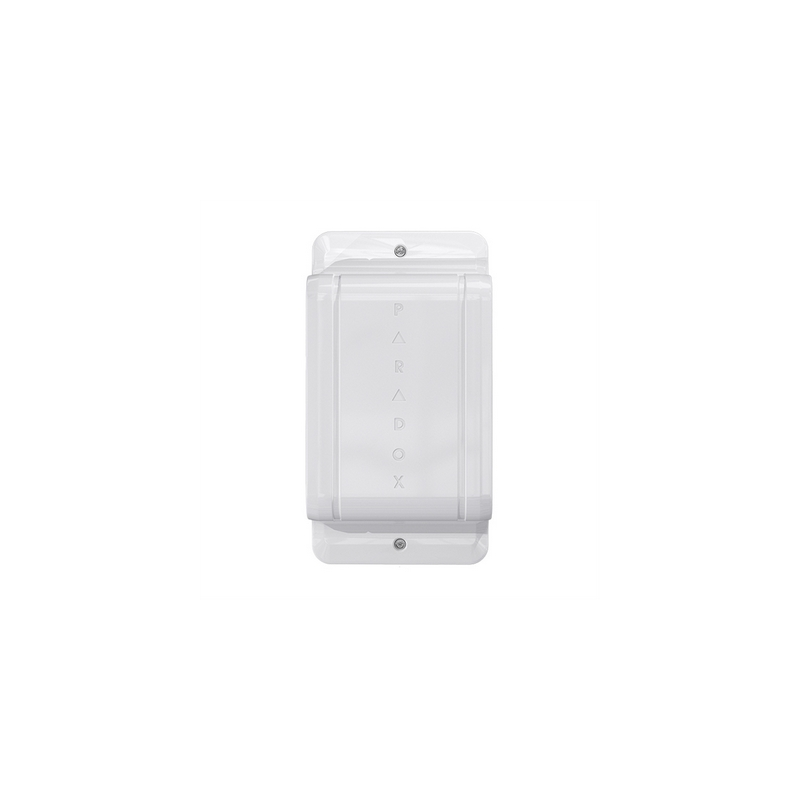

Paradox NV780MR Outdoor Pet Immunity Detector

Paradox NV780Mr radio outdoor detector for Paradox alarm center

Works with a radio transmitter / receiver

The Paradox NV780MR detector provides a pre-entry protection solution while keeping the perimeter free of movement, designed to protect exterior/interior walls and doors or windows.

The Paradox NV780MR detector includes two side-by-side dual passive infrared detectors (right and left view), independent of each other with separate anti-mask detection for each side.

The optics are specially designed to provide multiple narrow beams for excellent detection covering up to 12m (40ft) on each side.

Range adjustment is done by adjusting the angle of view of the downward-pointing beams (moving them up and down).

Detectors are configurable to report as a single unit (two side detectors reporting to a single zone output) or as dual units (each side reporting to a separate zone).

Paradox NV780MR outdoor detector features:

• Dual-Sided Anti-Masking Detection - Active IR detection, 20 second fast detection designed to detect liquid spray outdoors and block objects up to 10" (25cm) away

• Pet immunity capability, up to 40 kg (90 lbs)

• Arrangement of 4 two-element sensors

• High efficiency long focal length lens (1.77")

• Combined optics - mirror and Fresnel lens for optimal sharp detection

• NV780MR wireless frequency selection supports two internally selectable frequencies

• Single or dual operating modes

• Optical and digital range settings

• Dual LED indicators and buzzer

• Wall mounting, with built-in level tool

• EN50131 Grade 2
