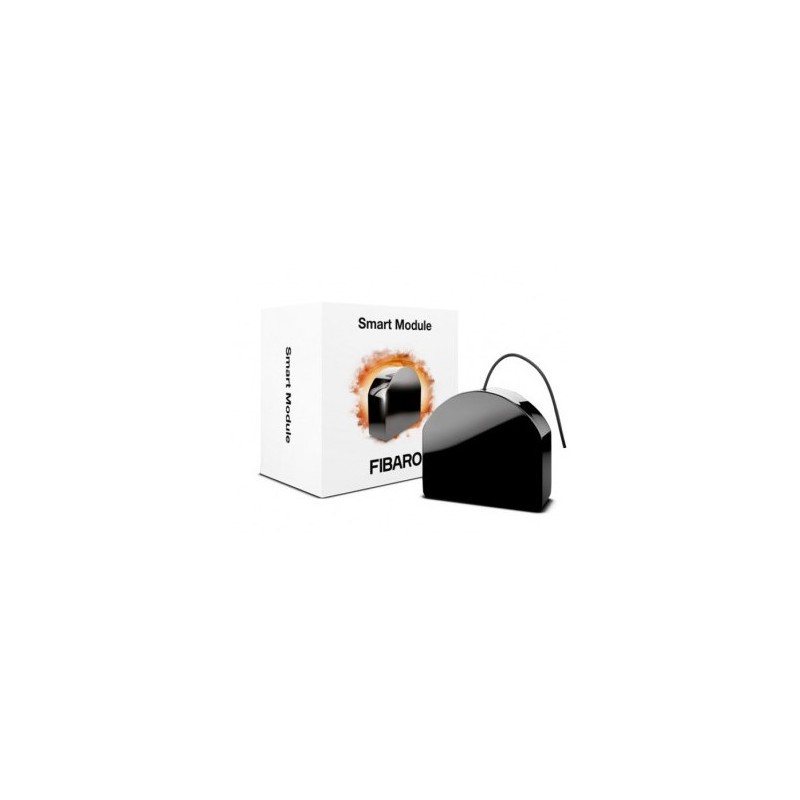

Fibaro FGS-214 Z-Wave Plus potential free switch module

The Fibaro FGS-214 module has a potential-free relay (dry contact) with a timer function (allowing to create a pulse).

The Fibaro FGS-214 mmodule can therefore be used either to switch a classic 230V voltage, or any type of DC power supply (5V, 12V .. 24V DC).

The Fibaro FGS-214 module can be used to control any type of load such as a boiler (by connecting the dry contact instead of a thermostat) or a motorized gate, garage door...

Features module FIBARO FGS-214 :

• Control a light/appliance remotely

• Installs behind an existing switch (bi-stable or mono-stable)

• ON/OFF function

• Potential free relay (Control of gate, boiler, garage door etc.)

• Integrates the Z-Wave 500 series chip

• 250% faster communication compared to standard Z-Wave devices

• Integrated scene activation mechanism (via S2)

• Security Communication and Notification Classes

• Setup menu with LED

• Supports secure mode (Z-Wave network security) encrypted with AES-128 encoding

• Integrated Z-Wave network coverage tester

• OTA software update (controller dependent)

• Larger terminal blocks for easier wiring

• Rounded shape to meet the highest standards

• Small, discreet and aesthetic

• Ease of use and installation

• Power supply: 100 - 240V~, 50/60Hz or 24 - 30 Vdc

• Wiring: 3 wires, neutral required (in 230V)

• Maximum power: 6.5A (resistive load) - 2A (inductive load) - 1A (capacitive load)

• Frequency: 868.42 MHz

• Transmission distance: 50m free field, 40m indoor (depends on building structure)

• Signal strength: 1mW

• Dimensions: 42.5mm x 38.25mm x 20.3mm (L x W x H)

• Operating temperature: 0-35°C

• Standards: CE, ROHS, 2011/65/EU, 2014/53/EU, 2015/863, ZWAVE PLUS
