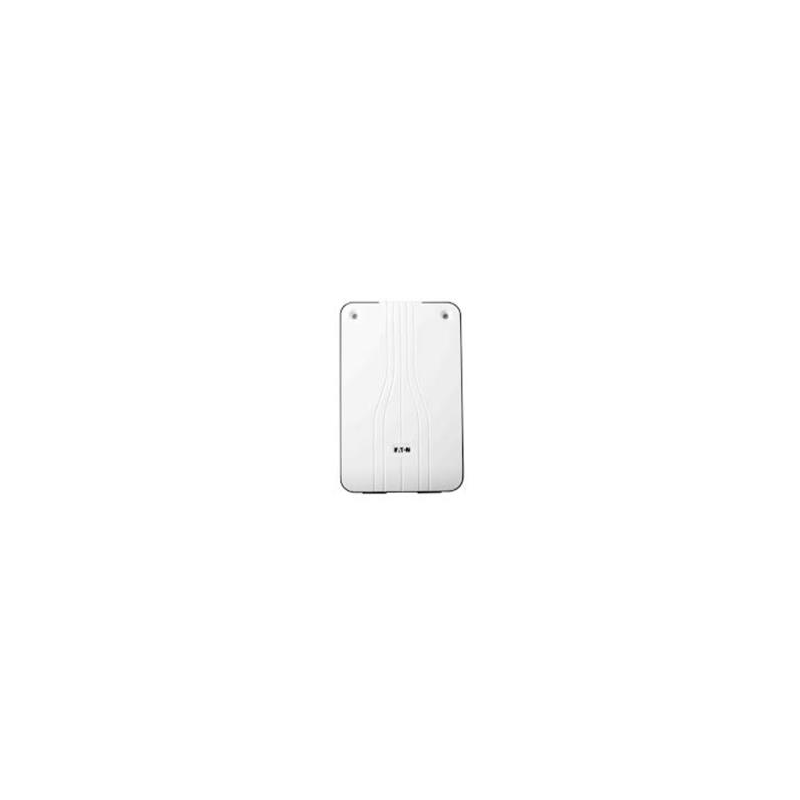

Eaton alarm I-ON 30 RFR 30 radio zones NFA2P T2

I-ON30RFR is an NF A2P 2 Shield radio anti-intrusion alarm system.

The system can manage 30 radio detectors assignable to full arming and 3 partial arming or 4

independent partitions.

An IP connection (RJ45) allows the system to be connected to the internet and to use the Eaton SecureConnect™ application.

System extension

The control panel can be extended to 60 detectors using radio or wired expansion modules with or without

auxiliary power supply.

Measurement of radio range

The system measures the radio ranges point by point in order to optimize the installation.

Tradition and modernity

The system can be used with or without an internet connection. The implementation and the use can be done only with the keypad of the control unit or with a computer via the embedded web server

• 30 radio zones / 30 detectors

• 30 users: code, badge & remote control

• Radio 868MHz; 10mW in narrowband FM.

• Backlit LCD keypads

• User application available

• Cloud installer

• Intuitive I-ON programming

• Integrated IP remote monitoring

• Ethernet RJ45 connection

Characteristics of the EATON I-ON30 RFR alarm unit:

• 30 basic radio zones expandable to 60 radio or wired zones

• Management of 4 partitions

• 30 users

• Radio 868MHz; 10mW in narrowband FM.

• SecureConnect compatible

• Backlit LCD keypads

• User application available

• Intuitive I-ON programming

• Integrated IP remote monitoring and sending of Emails

• Built-in RJ45 Ethernet connection

• Central NFA2P 2 shields
