Hikvision outdoor detector 180 degree optex WXI-RAM transmitter DS-PM1-I1-WE

Optex WXI-RAM outdoor detector with universal wireless transmitter for AX Pro control panels

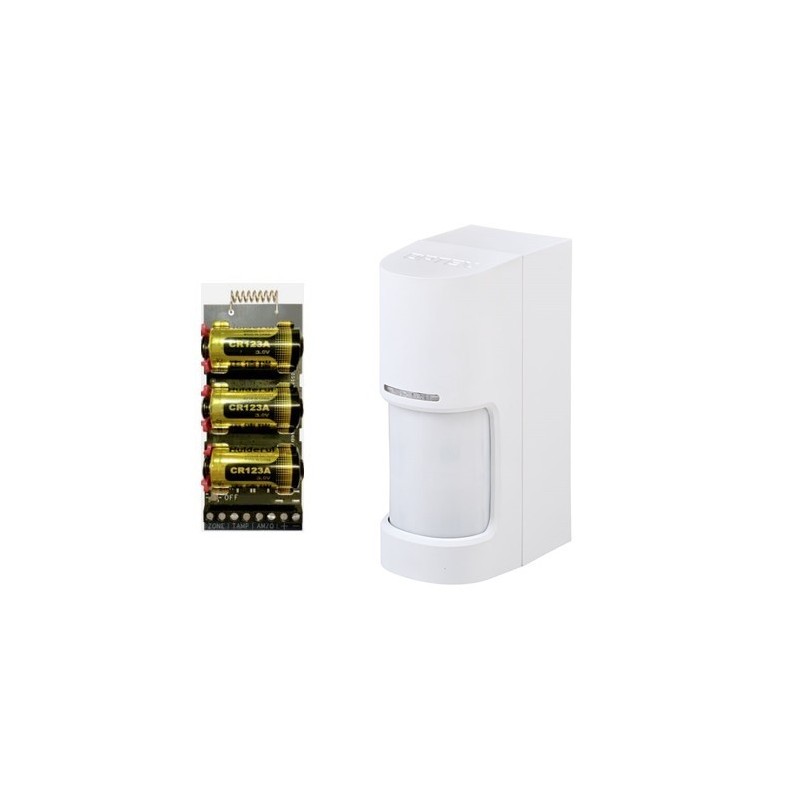

Pack consisting of:

• An Optex WXI-RAM detector

• A Hikvision DS-PM1-I1-WE Transmitter

Features Hikvision DS-PM1-I1-WE universal wired zone transmitter AX PRO:

• Single Input Transmitter

• Two-way wireless communication at 868 MHz

• LED display, shows the actual status of the device

• Detection of device removal by accelerometer

• Power supply via 3 CR12 batteries

• RF transmission distance 1700 max.

• With 3.3V voltage output, can be used to power external wired detector

• With one tamper input and one PGM, can be used as zone input or alarm output

• Put inside wireless ready detector

• 3 indicators: Alarm/Tamper (Red), Fault (Amber), Signal Strength (Green/Red)

• Operating temperature: -10°C 55°C

• Dimensions: 10.2cm x 4.1cm x 2cm

• Weight (without battery): 35g

Optex WXI-RAM features:

• Passive infrared technology

• Installation height: 0.8 to 1.2m

• On batteries

• 180° angle

• Power supply: 3 to 3.6 V DC Lithium batteries

• Consumption: 16 μA in stand-by 4mA max. at 3 V

• PIR distance limit: 2.5 to 12m

• PIR zones: Horizontal 14 pairs, vertical 2 levels

• The tamper output is shared with the trouble output

• IP55

• LED indicator: Red LED: 1. Pre-heating, 2. Alarm, 3. Anti-mask detection

• Mounting: Wall, post

• Operating temperature: -30°C 60°C (except batteries)

• Weight: 600g
