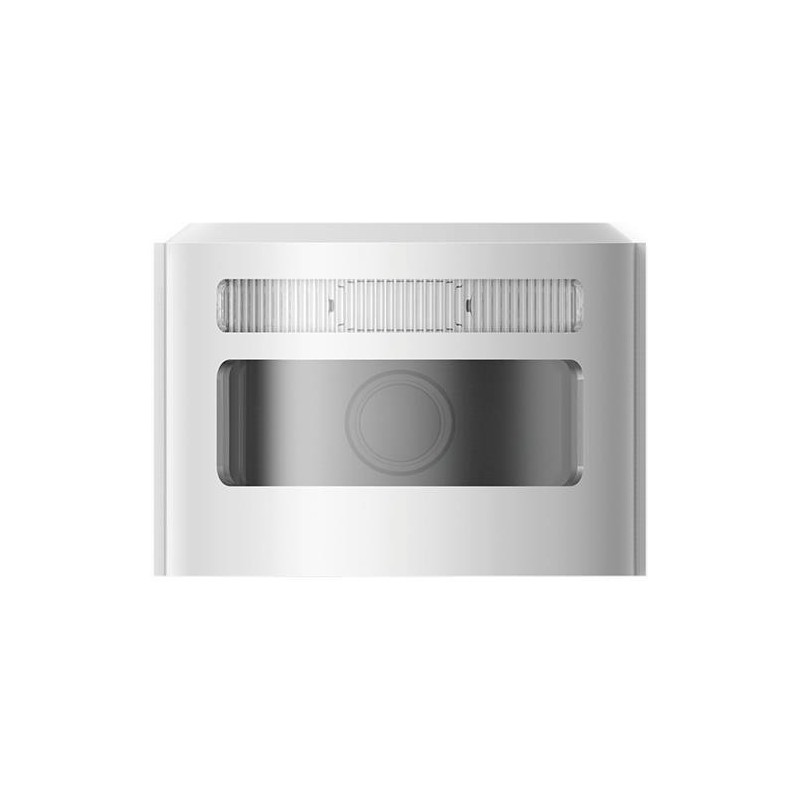

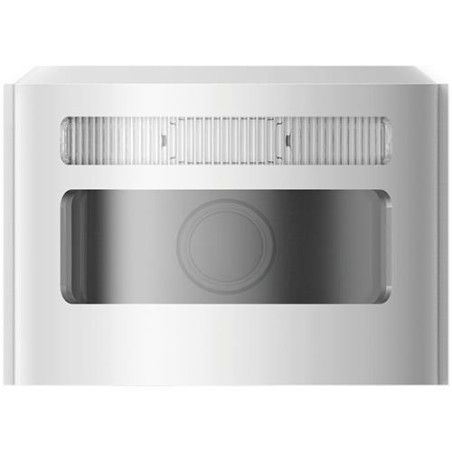

Hikvision DS-PDCM15PF-IR Camera Module for Outdoor Sensor

Hikvision DS-PDCM15PF-IR camera module for the removal of doubt

Integrates with Tri-Tech DS-PDTT15AM-LM-WE detector

Characteristics Hikvision DS-PDCM15PF-IR camera module for outdoor detector:

• Detection performance

  • Detection method Video verification

• Characteristic

  • 3D digital noise reduction

  • Focal length 2.0mm@F2.25

• Video

  • OS02D20 Image Sensor

  • Angle of view 137.2°(H), 80.1°(V)

  • JPEG image type

  • Resolution 640*480,320*240,160*120

  • Frame rate 2

  • Extra light Infrared light

  • Filling range 15m

  • Auto Day/Night Switch

• Interface

  • Communication interface 1 12-bit data interface

• Electrical characteristics

  • Power supply 3 VDC

  • Power consumption 1200mA

• General

  • Operating temperature -25°C to 60°C (-13°F to 140°F)

  • Storage temperature -25°C to 60°C (-13°F to 140°F)

  • Operating humidity 10% to 90%

  • IP66 IP rate

  • Dimensions (WxHxD) 74.1 mm x 72.35 mm x 53 mm

• Weight 155g
