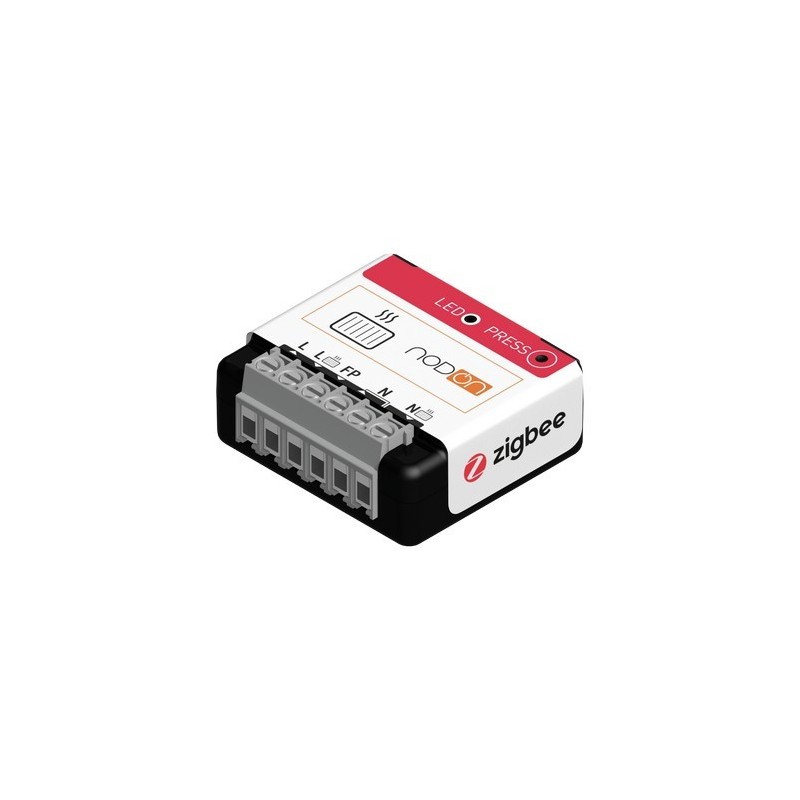

Nodon SIN-4-FP-21 - Zigbee module electric radiator pilot wire

The Nodon SIN-4-FP-21 Zigbee Electric Radiator Pilot Wire Module allows you to remotely control the pilot wire radiators up to 6 commands.

The Nodon SIN-4-FP-21 Zigbee Pilot Wire Module allows you to save energy by heating up your system at given times or before your arrival.

The Nodon SIN-4-FP-21 Zigbee Pilot Wire Module can manage up to six modes at a minimum: Comfort, Eco, Frost Protection and Shutdown. Paired with a compatible home automation unit, heating management becomes intelligent and automatic.

Technical characteristics Nodon SIN-4-FP-21 - Zigbee module electric heater pilot wire:

• Power supply: 230V AC ~ 50Hz

• Power consumption: <1W

• Max. heating power: 3680W

• Instantaneous power (W) and cumulative energy (Wh) metering – compatible home automation gateway required

• Modes: 6 Orders Pilot Wire

• Radio Protocol: Zigbee 3.0

• Frequency band used: 2.4Ghz

• Maximum Radio Power: +10dBm

• Range: up to 40m indoors

• Operating Temperature:
  The module can withstand an ambient temperature:


  • Between -20 and 40° in the open air.

  • Between -20 and 35°C in a flush-mounted box.

  • Between -20 and 40°C in the DRB (DIN Rail Housing)

  • of NodOn.

  • Between -20 and 40°C in the BPS (Setting Box)

  • in Projection) of NodOn.

• Ingress protection: IP 20
