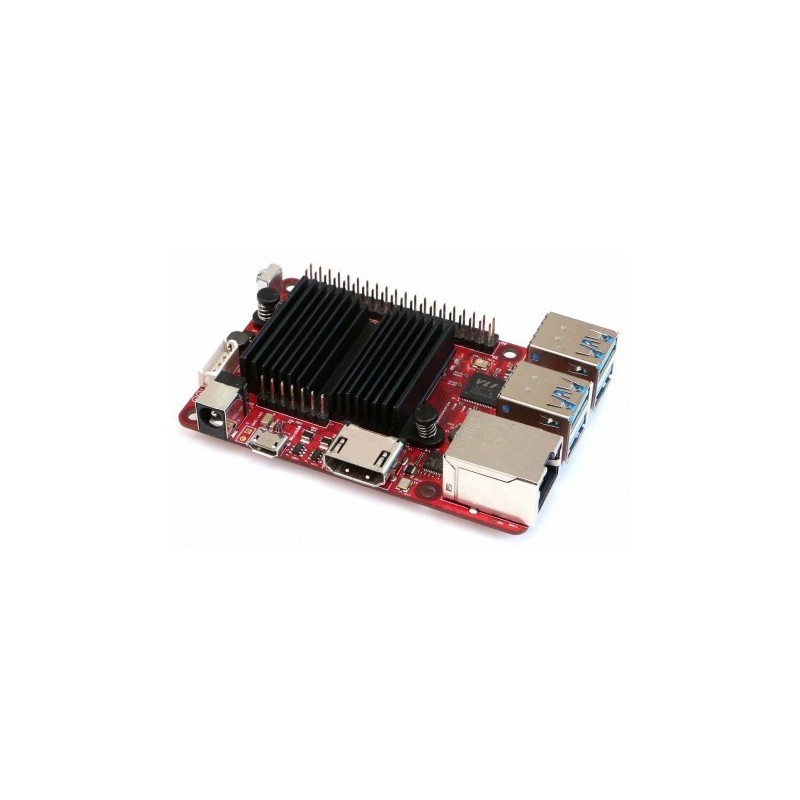

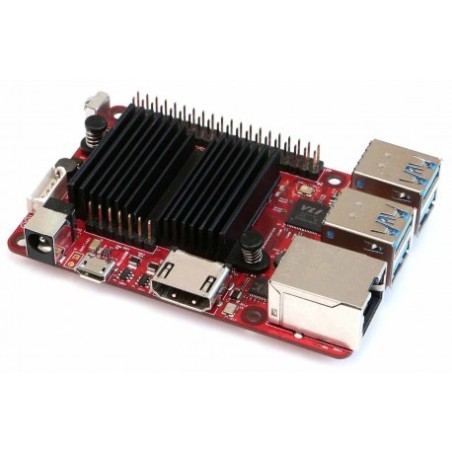

Odroid C4 - Single Board Computer

ODROID C4 is a next-generation single-board computer that is more energy efficient and capable than ODROID C2, which was introduced more than four years ago as the world's first affordable 64-bit ARM computer.

The ODROID C4's main processor is built with a quad-core Cortex-A55 cluster with a next-generation Mali-G31 GPU.

A55 cores operate at 2.0GHz without thermal throttling using the original heatsink for a rugged and quiet computer.

Multi-core CPU performance is approximately 40% faster and system DRAM performance is 50% faster than ODROID C2.

Characteristics Odroid C4 single-board computer:

• Card dimensions: 85 mm x 56 mm x 1.0 mm

• Heatsink dimensions: 40 mm x 32 mm x 10 mm

• Weight: 59 g with heatsink

• Amlogic S905X3 12nm Processor

• L1 instruction cache: 32 KB, 4-port associative set (128 sets), 64-byte rows, shared by 1 processor

• L1 data cache: 32 KB, 4-port associative set (128 sets), 64-byte rows, shared by 1 processor

• L3 data cache: 512 KB, 16-port associative set (512 sets), 64-byte rows, shared by 4 processors

• Quad-Core Cortex-A55 (2.016GHz)

• ARMv8-A architecture with Neon and Crypto extensions

• Mali-G31 MP2 GPU with 4 execution engines (650Mhz)

• 4GB DDR4 memory with 32-bit bus width

• Data rate: 2640 MT/s (grade PC4-21333)

• Low-power design of 1.2 volts

• Storage 1x eMMC connector (8/16/32/64GiB are available)

• 1x Micro SD slot (DS/HS mode up to UHS-I SDR104)

• 1 x GbE LAN ports (RJ45, supports 10/100/1000 Mbps)

• Realtek RTL8211F (Ethernet transceiver)

• LED indicators

• Green LED: Flashing by data traffic at a 100 Mbps connection

• Orange LED: Flashing when data traffic at 1,000 Mbps connection

• Optional USB Wi-Fi adapters

• 1 x HDMI 2.0 video (up to 4K@60Hz with HDR, CEC, EDID)

• Audio 1 HDMI digital output

• 1 x Optional SPDIF optical output

• External I/O 4 USB 3.0 host ports (sharing a single root hub)

• 1 USB 2.0 OTG port for host or device mode. (No power input)

• 1 x Serial Debug Console (UART)

• 1 x Peripheral expansion connector (40-pin, 2.54mm pitch)

• 2x DC 5V, 2x DC 3.3V, 1x DC 1.8V, 8x GND

• 1x SPI

• 1x UART

• 2x I2C

• 6x PWM

• 2x ADC input (12bit, 1.8V Max)

• 25x GPIO (maximum)

• 1x Audio expansion connector (7-pin, 2.54mm pitch)

• 1x DC 5V

• 1 SPDIF output

• 1x I2S

• All 3.3V I/O signal levels, except for ADC input at 1.8 Volt max.

• Other Features IR receiver for remote control

• System LED indicators:

• Red (PWR) – Turned on when DC power is connected

• ALIVE - Blinking like a heartbeat while the kernel is running.

• Power supply 1 x DC socket: outer diameter (negative) 5.5 mm, inner diameter (positive) 2.1 mm

• DC input: 5.5V ~ 13V (*15V/4A power supply is not compatible with C4)

• A DC 12V/2A AC adapter is recommended

• Power consumption:

• IDLE: ≃ 1.8W

CPU stress: ≃ 3.64W (Performance Governor)

Power off: ≃ 0.14W
