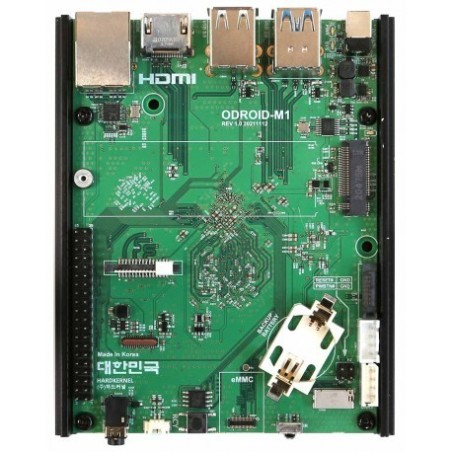

Odroid Hardkernel M1 - 8 Gb Single Board Computer

The ODROID-M1 is a single-board computer with a wide range of useful peripherals developed for use in a variety of embedded system applications. Versions of 8GB RAM and 4GB RAM are available.

The processor has four ARM Cortex-A55 processors with low power consumption and high-efficiency operation at 2 Ghz.

A larger 8GB LPDDR4 DRAM is available.

Pre-installed petitboot in the built-in 16MB SPI-Flash memory makes it easy to manage various OS and kernel versions and supports booting from microSD, eMMC, NVMe, SATA and USB storage devices.

A standard-sized 22mm x 80mm M.2 NVMe storage device can be installed directly on the ODROID-M1.

A single native SATA 3.0 (non-USB) port is provided for use with a 2.5-inch HDD or NAND SSD memory storage device. The four-port MIPI-DSI port can be directly connected to an LCD panel.

The two-port MIPI-CSI port can be directly connected to a camera sensor module.

Since machine learning is a trend in this industry, there is a neural network processing unit (NPU) that can provide up to 0.8 TOPS on the M1 single-board computer.

A stylish and cool blue M1 metal housing kit is an option available to protect your ODROID-M1 card.

Characteristics Odroid M1 single board computer:

• Rockchip RK3568 Quad-Core Cortex-A55 32-bit 1.992 GHz (ARMv8)

• 4GB or 8GB (depending on the model chosen) of LPDDR4 RAM

• x40 GPIO header

• Micro USB 2.0 port

• x2 USB 2.0 ports

• x2 USB 3.0 ports

• RJ45 Ethernet port (10/100/1000)

• HDMI 2.0 port

• microSD slot

• Storage: eMMC port, Micro SD port, M.2 SSD NVME port, SATA3.0 port, 1 x SATA Connector connector

• Native SATA 3.0 port for use with 2.5-inch HDD or NAND SSD memory storage device

• The M.2 NVMe storage device is M-Key PCIe3.0 type 2-way standard size 22 mm x 80 m

• SATA power supply (5 volts only)

• 3.5mm audio jack port

• Mono speaker output (1.3W at 8 Ω load)

• MIPI CSI 2-way

• MIPI DSI 4-way

• SPI Recovery Switch

• 16 MB SPI Flash

• UART for System Console

• x2 system LED indicators and M.2 LED indicator

• Integrated infrared receiver

• Power and reset jumpers

• DC power jack

• PSTN backup battery holder with DC plug (DC input: 7.5V~15.5V)

• Dimensions: 90 mm x 122 mm x 16 mm

• ODROID-M1 compatible with ODROID-M1 metal housing

We recommend that you power your ODROID-M1 with a good quality 12V/2A power adapter.
