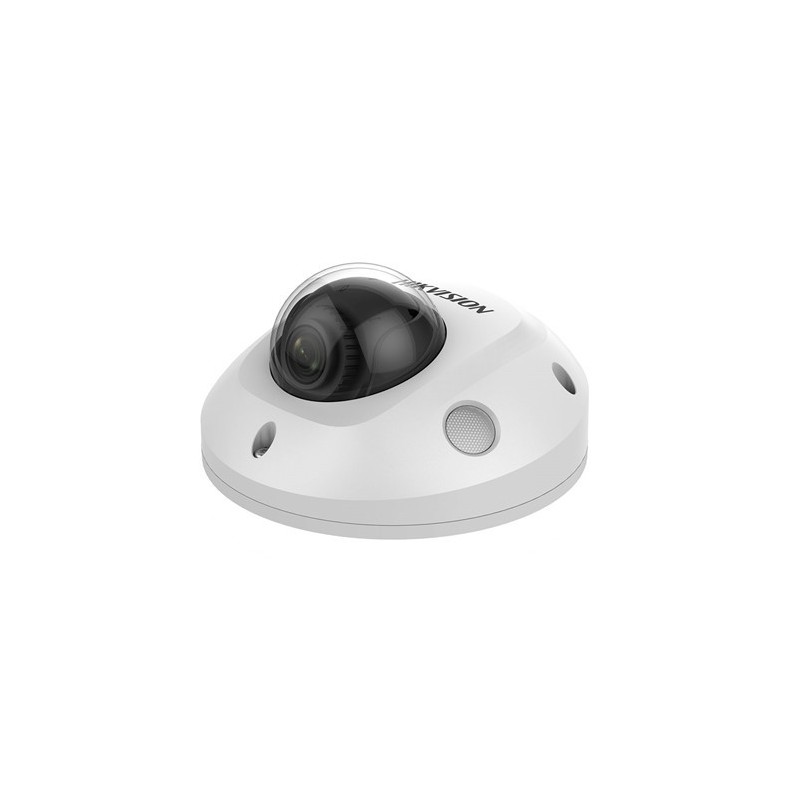

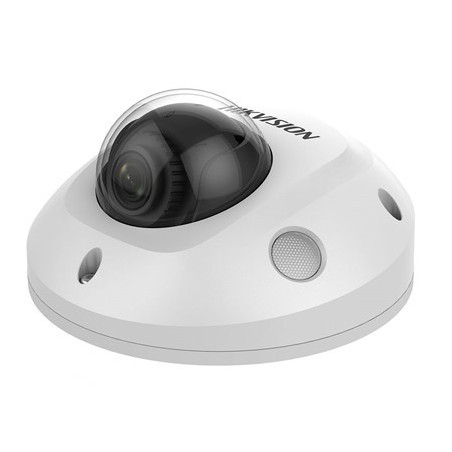

HIKVISION DS-2CD2386G2-I 2.8 POE IP Dome 8MP Eyeball Acusense

IP dome camera for monitoring your home

This IP dome camera works alone or with an NVR digital recorder

Using deep learning algorithms, Hikvision AcuSense technology brings the classification of human targets and vehicle alarms to front-end and back-end devices.

The system focuses on human and vehicle targets, greatly improving alarm efficiency and effectiveness.

Features HIKVISION DS-2CD2386G2-I 2.8 POE IP Dome 8MP Eyeball Acusense:

• 1/1.8" progressive scan CMOS image sensor
• Min. Illumination: Color 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Speed 1/3 sec to 1/100,000 sec
• Slow Shutter Yes
• P/NP/N
• Wide dynamic range 120 dB
• IR cut filter day and night
• Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
• Lens type Prime lens, 2.8, 4 and 6 mm optional
• Focal length and FOV: 2.8 mm, horizontal field of view 111°, vertical field of view 59°, diagonal field of view 131° 4 mm, horizontal field of view 87°, vertical field of view 47°, field of view diagonal 102° 6 mm, horizontal field of view 51°, vertical field of view 28°, diagonal field of view 60°
• M12 lens mount
• Fixed iris type
• F1.6 aperture

• DORI
  • 2.8mm: D: 89.2m, O: 35.4m, R: 17.8m, I: 8.9m
  • 4mm: D: 99.4m, O: 39.4m, R: 19.9m, I: 9.9m
  • 6 mm: D: 140.0 m, O: 55.6 m, R: 28.0 m, I: 14.0 m
  • Smart Supplement Light Yes
  • IR wavelength 850 nm
  • IR range up to 30m
• Video
  • Max. 3840×2160 resolution
  • To integrate
  • 50Hz: 25fps (3840×2160, 3200×1800, 2688×1520, 1920×1080, 1280×720)
  • 60Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-flow
  • 50Hz: 25 fps (640×480, 640×360)
  • 60Hz: 30fps (640×480, 640×360)
  • Third stream
  • 50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
  • 60Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
    *Third stream is supported under certain settings.

• Video compression
  • Main stream: H.265/H.264/H.264+/H.265+
  • Sub-stream: H.265/H.264/MJPEG
  • Third stream: H.265/H.264
    *Third stream is supported under certain settings.
  • Video bit rate 32 Kbps to 16 Mbps
  • H.264-like Base Profile/Main Profile/High Profile
  • H.265-like main profile

    H.264+ main stream support
    H.265+ main stream support
    CBR/VBR Bitrate Control
    Scalable Video Coding (SVC) H.264 and H.265 encoding
    Region of interest (ROI) 1 fixed region for main stream and sub-stream
•
  Audio
  Audio type -U: mono sound
  Audio Compression-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
  audio bit rate
  -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps
  (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
  -U Audio Sampling Rate: 8kHz/16kHz/32kHz/44.1kHz/48kHz
  -U Ambient Noise Filtering: Yes
•
  Network
  Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE , SNMP, ARP
  Simultaneous live view Up to 6 channels
  Open network video interface API (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
  User/Host Up to 32 users. 3 user levels: administrator, operator and user
  Security: Password Protection, Complicated Password, HTTPS Encryption, IP Address Filter,
  Security audit log, basic authentication and digest for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
•
  Network storage
  Local storage on MicroSD/SDHC/SDXC card (256 GB) and NAS (NFS, SMB/CIFS), auto
  network replenishment (ANR)
  With high-end Hikvision memory card, memory card encryption and health
  detection are supported.
  Client iVMS-4200, Hik-Connect, Hik-Central
•
  Web browser
  Plug-in required live view: IE 10+
  Live view without plug-in: Chrome 57.0+, Firefox 52.0+
  Local Service: Chrome 57.0+, Firefox 52.0+
•
  Picture Settings Switch Yes
  Image Settings
  Rotate Mode, Saturation, Brightness, Contrast, Sharpness, Gain, White Balance
  adjustable by client software or web browser
  Day/Night switching Day, Night, Auto, Schedule
  SNR ≥ 52dB
  BLC, HLC, 3D DNR image enhancement
  Target Crop Yes
•
  Interface
  Ethernet interface 1 RJ45 10M/100M self-adaptive Ethernet port
  Built-in storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB
  Built-in microphone -U: Yes
  Hard Reset Yes
  Event
  Basic event
  Motion detection (classification of human and vehicle targets), video sabotage alarm, exception
