Hikvision DS-PWA96 - Pack Alarm Pro WIFI IP 3G/4G Detector Camera ColorVu Indoor Siren

The Hikvision DS-PWA96 AX Hub Pro is compatible with On/Alive cameras, offering video verification for users and monitoring stations to confirm events.

How to install your AX Pro control panel

Simple and easy installation by application or web Client:

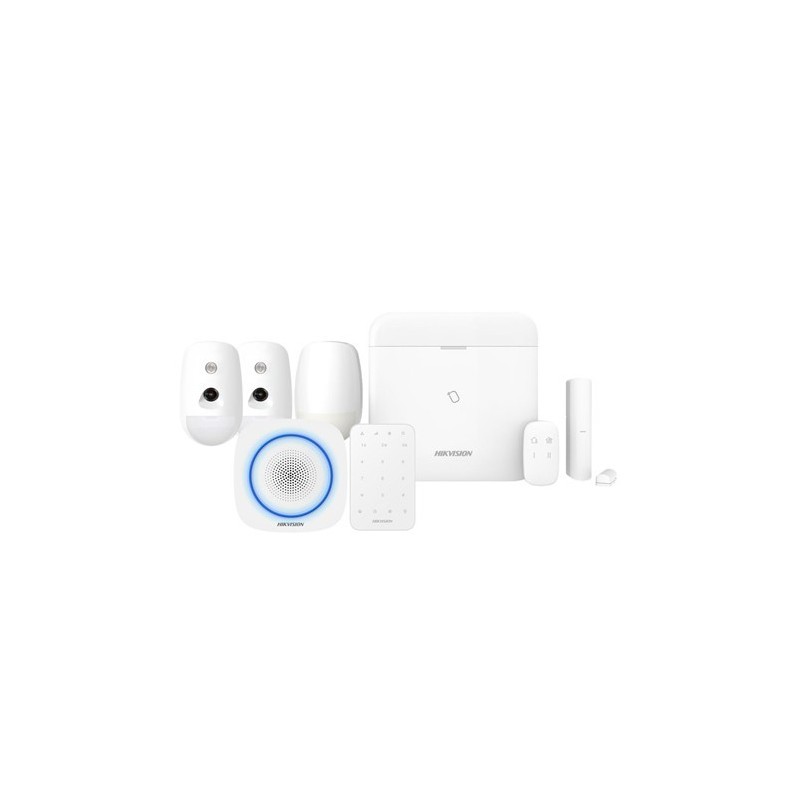

HIKVISION AX PRO kit consisting of:

• 1x DS-PWA96-M-WE AXHub PRO series 96-zone radio control panel (integrates 3G/4G communication module for instant sending of video clips to ARC)

• 1x LED keyboard via 868MHz radio (DS-PK1-E-WE)

• 1x 868MHz radio remote control (DS-PKF1-WE)

• 1x 868MHz radio PIR detector (DS-PDP15P-EG2-WE) with a range of 15 meters and anti-animal up to 30 kg

• 2x PIRCAM Color Detectors Seen by radio 868MHz (DS-PDPC12PF-EG2-WE) with a range of 12 meters and anti-animal up to 30 kg

• 1x 868MHz radio magnetic aperture detector (DS-PDMC-EG2-WE)

• 1x 868MHz indoor radio siren (DS-PS1-I-WE).

Activate the device through the web browser

Use the web browser to activate the device. Use the SADP software or PC client to search for the device online to obtain the IP address of the device and activate the device on the webpage.
Before you start
Make sure your device and PC connect to the same LAN.

1. Open a web browser and enter the IP address of the device.
Remark
If you connect the device directly to the PC, you need to change the IP address
of your PC on the same subnet as the device. The default IP address of the device
is 192.0.0.64.

2. Create and confirm the administrator password.
Warning
STRONG PASSWORD RECOMMENDED - We strongly recommend that you create a
password of your choice (using a minimum of 8 characters, including
uppercase, lowercase, numbers, and special characters) in order
to increase the safety of your product. And we recommend that you reset your
password regularly, especially in the high security system, password reset
Monthly or weekly can better protect your product.

3. Click OK to complete the activation and go to the Live View page.

4. Change the IP address of the device.

1) Enter the IP address change page. Configuring → TCP/IP → Network
2) Change the IP address.
Axiom Security Control Panel Installation Guide
11
3) Save the settings.

Configuration via Mobile Client

Download and log in to the Mobile Client
Download the Hik-Connect mobile client from Google Play (for Android) or the App Store (for iOS) and log in to the client before using the security control panel.

When an alarm is triggered, notifications will be sent to users through various channels, including app notification, emails, phone calls, and SMS.

The AXHub is easy to set up with an intuitive and user-friendly interface.

The system expands to connect up to 32 sensors and 32 outputs, wired or wireless.

The AXHub is compatible with the Hik-connect app, making it easy to manage the system and share devices with family members and has different permission levels

Features Hikvision DS-PWA96 - Pack Alarm Pro WIFI IP 3G / 4G detector camera ColorVu indoor siren:

• AX Pro tri-X two-way radio with AES 128-bit encryption of communication

• RFID badge reader (13.56MHz), 4 status LEDs, 1 buzzer and voice announcement

• Management of 32 partitions, 96 zones / outputs (relays), 8 keyboards, 8 players, 4 sirens, 4 repeaters, 48 users, 5000 events and PIRCAM management

• Transmission via multiple channels of basic TCP/IP, WIFI and GPRS communication

• Compatible with the "Cloud HIK Connect" via the HIK-Connect mobile app

• Transmission in SIA DC09 (SIA and ID) sending notifications, SMS and voice call

• Configuration via web interface, HIK-ProConnect application

• Removal of doubt via PIRCAM, Video clips via email and App

• DS-PWA96-M-WE compliant EN 50131-1 Grade 2 compliant + 1 contact DS-PDMC-EG2-WE + 1 detector DS-PDP15P-EG2-WE + 1 remote control DS-PKF1-WE

• Lithium-ion battery model 765965, Autonomy 12h

• 7-year warranty
