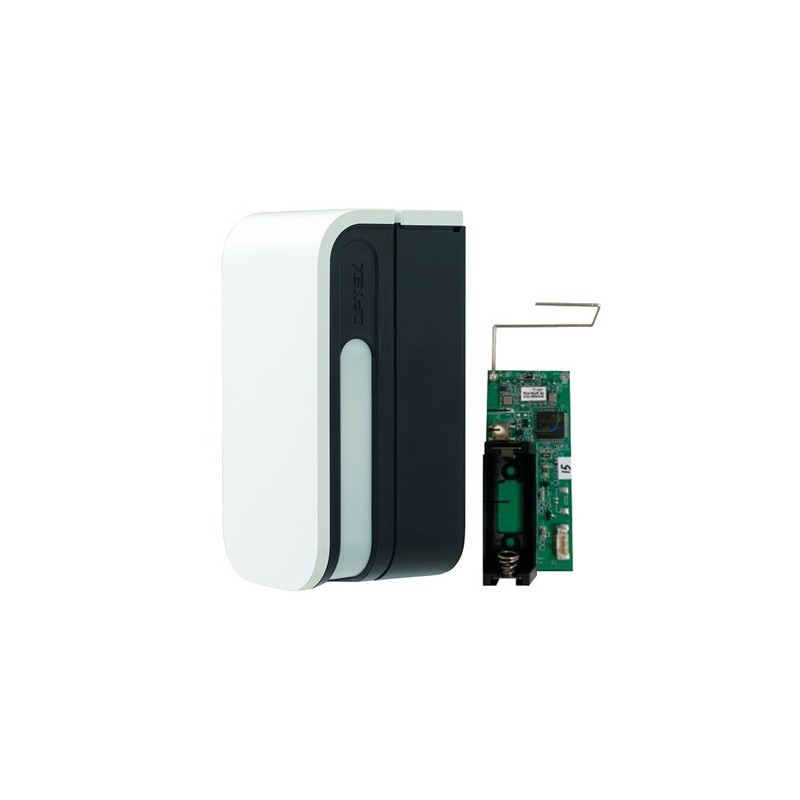

U-PROX BXS-R outdoor detector Optex BXS-R

Optex BXS-R outdoor curtain detector for U-PROX radio alarm control unit

Features U-PROX BXS-R outdoor detector Optex BXS-R:

• Side vision dual PIR detector for exteriors

• Lateral vision with dual sensor on each side

• Can connect to a CCTV camera to send a visual alarm when an intrusion is detected

• 4 PIR technology: detection range, sensitivity and alarm output can be configured independently on each side

• 12 meter coverage on each side

• Angle to wall adjustable to 0° or 3°

• 2 detection zones on each side

• Detection range adjustable in 5 levels (2.5/3.5/6/8.5/12 meters)

• Mounting height of 0.8~1.2 meters

• Adjustable sensitivity on each side (high and normal)

• SMDA (Super Multi-Dimension Analysis) logic against false alarms by vegetation and climatic factors

• Quick closing of the front cover, by pressure, and automatic walking test (3 minutes) with the closing of the cover.

• Right side alarm relay: NC/NA (10V DC, 0.01A, individual, right or general)

• Left side alarm relay: NC/NA (10V DC, 0.01A, individual, left or general)

• Fault/tamper output: NC/NA (10V DC, 0.01A)

• Integrated rear tamper

• Double conductive mesh protection

• Built-in level for quick and accurate installation

• Easy visual identification of all adjustment elements (indicated in blue color on the detector)

• Quick opening by 90 degree rotation of the interior screw

• Included cockpit protected on the rear part to house the transmitter via radio

• Degree of protection IP55

• -30°C ~ +60°C operating temperature

• Powered by 3V~9V DC lithium or alkaline batteries (not included)

• Compatible batteries: CR123A x3, 1/2AA x3 or x6, CR2 x3

• Battery holder: OPTEX-42 (RBB-01)

• Power supply from the transmitter battery via employee radio is recommended

• Max consumption: 8mA

• Dimensions: 199.7 x 92.8 x 98.7mm

• Weight: 550g
