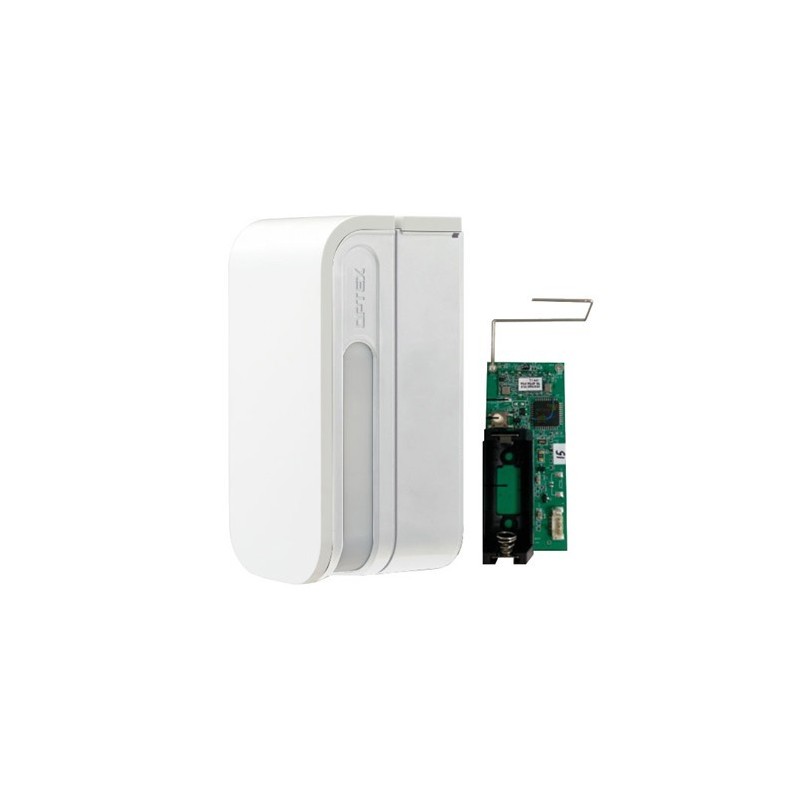

VESTA BXS-R - Outdoor detector Optex BXS-R white for Vesta control panel

Outdoor curtain detector Optex BXS-R color white for radio alarm center Vesta

Specifications VESTA BXS-R - White Optex BXS-R outdoor detector for Vesta control panel

• Dual PIR detector with exterior side view

• Side vision with dual sensor on each side

• Includes transmitter via radio F1 868MHz (TX-OPT-BXS-F1-868)

• Can be connected to a CCTV camera to send a visual alarm when an intruder is detected

• 4 PIR technology: detection range, sensitivity and alarm output can be set independently on each side

• 12-metre coverage on each side

• Wall angle adjustable to 0° or 3°

• 2 detection zones on each side

• 5-level adjustable detection range (2.5/3.5/6/8.5/12 meters)

• Mounting height of 0.8~1.2 meters

• Adjustable sensitivity on each side (extremely high and normal)

• Super Multi-Dimension Analysis (SMDA) processing logic against false alarms due to vegetation and adverse weather factors

• Quick closing of the front cover, by pressing, and automatic running test (duration 3 minutes) when closing the hood

• Right side alarm relay: NF/NO (10 V DC, 0.01 A, individual, straight or general)

• Alarm relay left side: NC/NO (10V DC, 0.01A, individual, left or general)

• Fault/Tamper Output: NC/NO (10 V DC, 0.01 A)

• Integrated rear sabotage

• Double conductive mesh protection

• Integrated level for fast and accurate installation

• Easy visual identification of all adjustment elements (marked in blue on the detector)

• Quick opening by rotating 90 degrees on the bottom screw

• Includes a protected compartment at the rear to house the radio transmitter

• IP55 degree of protection

• Operating temperature -30°C ~ +60°C

• Powered by DC 3V~9V lithium or alkaline batteries (not included)

• Compatible batteries: CR123A x3, 1/2AA x3 or x6, CR2 x3

• Battery holder: OPTEX-42 (RBB-01)

• It is recommended to power from the battery of the radio transmitter used

• Maximum consumption: 8mA

• Dimensions: 199.7 x 92.8 x 98.7 mm

• Weight: 550g
