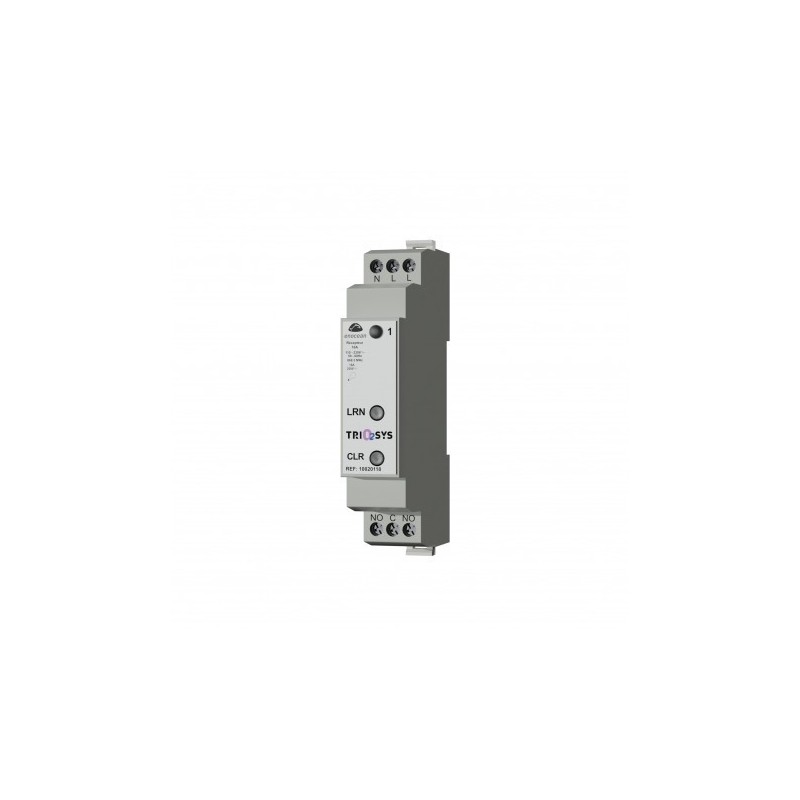

Trio2sys 10020118 - EnOcean 1 channel DIN rail receiver module

Trio2sys 10020118 EnOcean 1-channel DIN rail receiver module for lighting.

Trio2sys 100201148 EnOcean 1-channel DIN rail receiver module is installed behind a switch.

Trio2sys 10020118 EnOcean 1-channel DIN rail receiver module manages the On OFF modes of your circuit.

Trio2sys 10020118 EnOcean 1-channel DIN rail receiver module can be used via a home automation box or alone with a receiver.

FeaturesTrio2sys 10020114 - EnOcean 1 channel receiver module:

• 1 channel 16A receiver module

• EnOcean Technology

• Control lights/fixtures remotely

• ON/OFF function

• Supports any type of load

• Up to 32 transmitters can be assigned (switches, occupancy detectors, or magnetic window or door contacts)

• Zero Crossing Technology

• Repeater and status return functions

• Remote commissioning

• DIN rail mounting

• Easy to install and use

• Power supply: 230V~ / 50 Hz

• Power consumed: 3W

• Output Load:EnOcean Equipment Profile: D2-01-01

  • Resistive load: 16A/3500VA max (Cos φ=1)

  • Inductive: 800W with cosφ=0.4 to 0.6

  • Halogen/Incandescent: 2300W

  • Fluorescent: 1000W

  • Dimensions: 17.5 mm x 97.4 mm x 66.4 mm (1 DIN rail slot)

• Operating temperature: -10 to +45°C

• Humidity: 0% to 75% relative humidity (non-condensing)

• Transmission frequency: 868.3MHz

• Scope in buildings:

  • Masonry: 20m, through 3 walls maximum

  • Reinforced concrete: 10m, through 1 wall/ceiling maximum

  • Plasterboard / Wood: 30m, through 5 walls maximum
