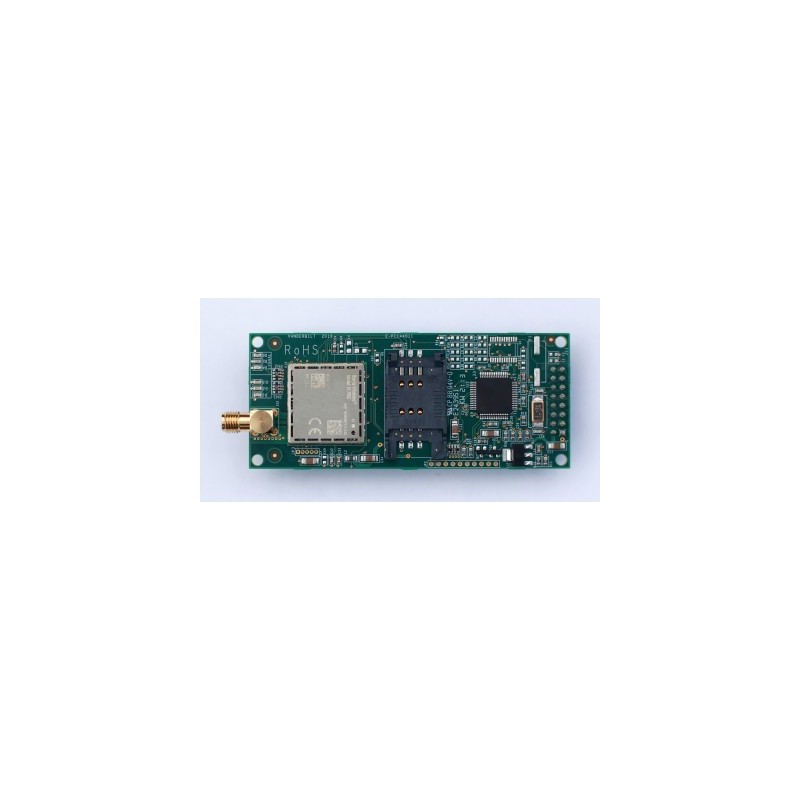

Vanderbilt SPCN340,000 4G GSM Module with Antenna

The Vanderbilt SPCN342 2G 3G 4G GSM module can be assigned to any mobile phone network by inserting a standard SIM card.

The Vanderbilt SPCN342 2G 3G 4G GSM module is compatible with the full range of SPC panels and plugs directly into the main PCB.

The Vanderbilt SPCN342 2G 3G 4G GSM module comes with an external antenna. The modem communicates with an Alarm Receiving Center (ARC) using common analog (SIA, Contact ID) or IP (EDP, FlexC) over 2G/4G (min. FW3.11) protocols.

The Vanderbilt SPCN342 2G 3G 4G GSM module also supports remote access features for scheduling and download configuration.

The SMS function allows the user/engineer to send a predefined text when selected events occur in the system or receive predefined SMS commands for security system control.

The Vanderbilt SPCN342 2G 3G 4G GSM module can be used as a primary communication path or as a backup to the PSTN modem or IP communication.

Features Vanderbilt SPCN342 2G 3G 4G GSM Module with Antenna for SPC NFA2P :

• 4G Network Connection: 800MHz/900MHz/1800MHz

• 3G: 900MHz/1800MHz

• 2G: 900MHz/1800MHz

• Operating current 130 mA max. at 12 VDC

• Quiting current 40 mA maximum at 12 VDC

• Operating temperature -10 to +50 °C

• Relative humidity 90% max. (non-condensing)

• Mounting Expansion Module for SPC Control Panel

• Dimensions (W x H x D) 90mm x 38mm x 25mm (PCB)

• Weight 0.130 kg

• EN standards / approval
