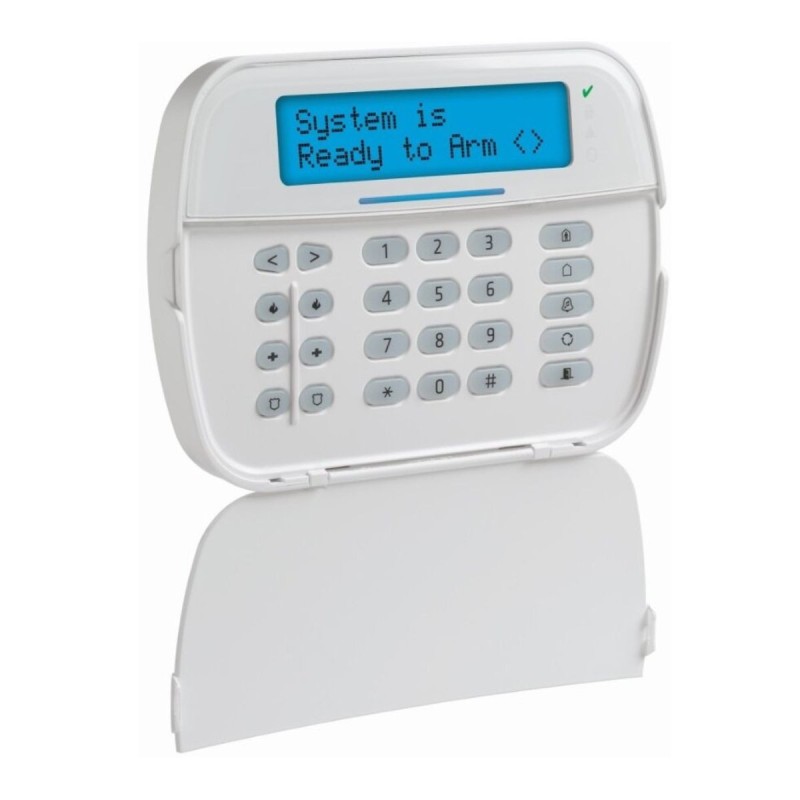

LCD keypad HS2LCD wired for alarm NEO PowerSeries DS.

The wired keyboard PowerSeries Neo LCD has 2 lines of 16 characters.

Among the customizable features of the keyboard is an input terminal/ output that can be programmed to function as an input zone, an output, programmable output or as a sensor of low temperature.

Other features include backlit buttons, adjustable for low-light situations and five programmable keys for activation by a single push on one button of the functions of the system. The function of door chime allows you to use multiple chimes pre-programmed to identify specific areas.

The integrated temperature sensor the keypads can be programmed to activate when the ambient temperature drops below 6° C and turn off at 8° C. The internal logic prevents the alarm central to use repeatedly in alarm mode in case of variations in temperature are minor, which limit the number of false alerts.

Keyboards wired PowerSeries Neo has five programmable keys that, once pressed, to enable the functions of the system.

The function of the quick release removes the step of disarm and rearm the system every time an occupant leaves the building.

Features:

• Dimensions :(L x w x d) : 168 x 122 x 20 mm

• Zone LCD display : 99 mm x 24 mm

• Current draw : 125 mA (max.)

• HS2LCD/HS2LCDP/HS2LED :100 mA

• HS2LCDRF/HS2LCDRFP :60 mA

• Voltage :12 V c. c. (par value)

• Operating environment :-10°C to 55°C

• Relative humidity :5% to 93%
