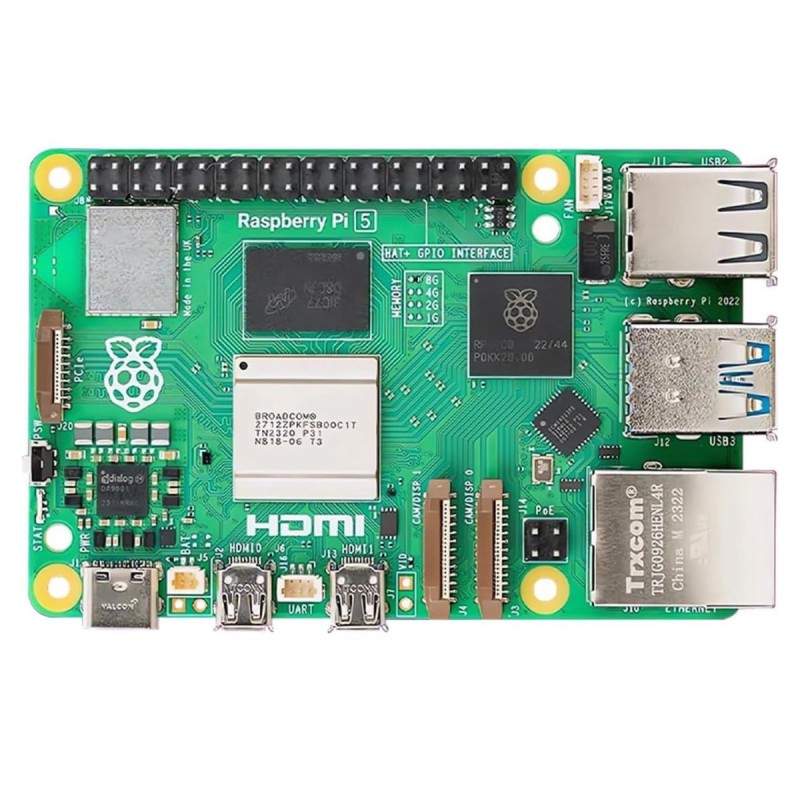

Raspberry Pi5 8GB - Raspberry Pi5 8GB Model B with 8GB RAM

Raspberry Pi5 8Gb model B with 8GB RAM

The Raspberry Pi 5 builds on the phenomenal success of the Raspberry Pi 4!

The Raspberry Pi 5 is 2 to 3 times more powerful and graphics-wise.

Featuring a 64-bit quad-core Arm Cortex-A76 processor running at 2.4GHz, the Raspberry Pi 5 offers a 2-3x increase in CPU performance over the Raspberry Pi 4.

Alongside a substantial improvement in graphics performance thanks to an 800 MHz VideoCore VII GPU;

The Raspberry Pi 5 8GB has dual 4Kp60 display output via HDMI and state-of-the-art camera support from a Raspberry Pi image signal processor, it provides a smooth desktop experience for consumers and opens the door to new applications for industrial customers.

For the first time, this is a full-size Raspberry Pi computer using silicon built in-house at the Raspberry Pi. The RP1 "southbridge" provides the bulk of the I/O capabilities for Raspberry Pi 5, and offers a radical change in the performance and functionality of the peripherals.

The overall USB bandwidth is more than doubled, allowing for faster transfer speeds to external devices.

UAS readers and other high-speed peripherals; the dedicated two-lane 1 Gbps MIPI camera and display interfaces from previous models have been replaced with a pair of four channels

1.5 Gbps MIPI transceivers, tripling the total bandwidth and supporting any combination of up to two cameras or displays

The maximum performance of the SD card is doubled, thanks to support for the SDR104 high-speed mode and for the first time, the platform exposes a single-lane PCI Express 2.0 interface, supporting high-bandwidth devices.

Features Raspberry Pi5 8GB - Raspberry Pi5 8GB with 8GB RAM:

• 2.4GHz quad-core 64-bit Arm Cortex-A76 processor, with 512KB L2 cache and 2MB shared L3 cache

• VideoCore VII GPU

• SDRAM LPDDR4X-4267 (4GB and 8GB SKUs available at launch)

• 802.11ac 2.4GHz and 5.0GHz Wi-Fi

• Bluetooth 5.0 / Bluetooth Low Energy (BLE)

• Micro SD card slot, with support for high-speed SDR104 mode

• 2 USB 3.0 ports, supporting simultaneous operation at 5 Gbps

• 2 USB 2.0 ports

• Gigabit Ethernet with PoE support (requires a PoE+ HAT)

• 2 x 4-channel MIPI camera/display transceivers

• PCIe 2.0 x1 interface for fast peripherals

• DC 5 V/5 A power supply (PD on)

• Raspberry Pi's standard 40-pin header

• Raspberry Pi's standard 40-pin header

• Real-time clock (RTC) powered by an external battery

• Built-in power button
