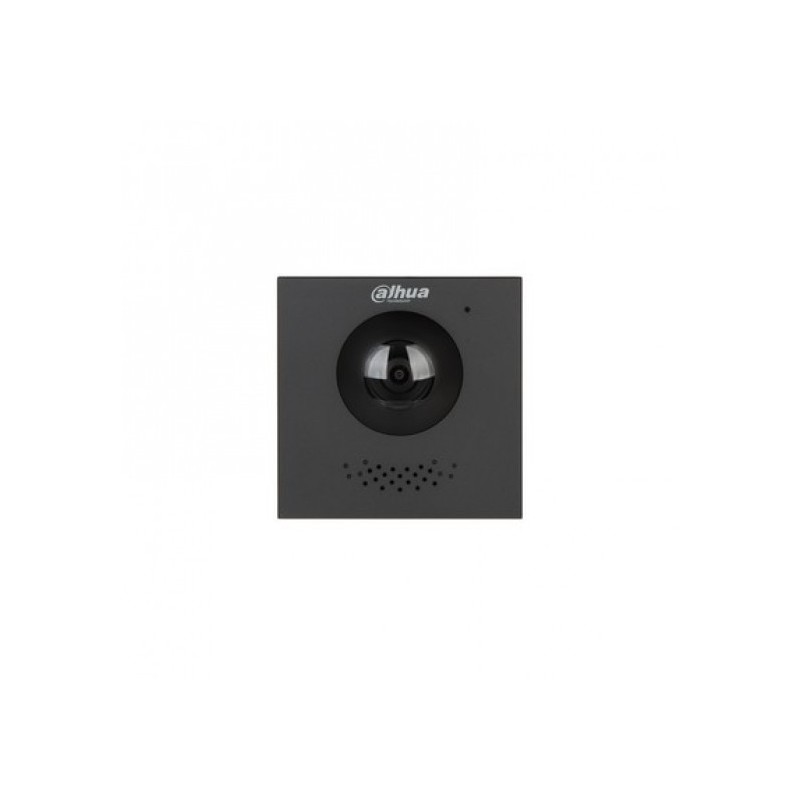

Dahua VTO2202F-P-S2 2-wire POE IP door station

Dahua VTO2202F-P-S2 2-wire IP door station

Dahua VTO2202F-P-S2 2-wire POE IP door station features:

• Linux operating system

• H.265 video compression

• 2 megapixel 1/2.5" CMOS image sensor

• Stream 1: 720P (25fps)

• Stream 2: 1080P (25fps)

• Colorfull HD low light mode with removable mechanical filter

• 1.9mm fisheye lens

• Viewing angle: 168.6°(H), 87.1°(V), 176.7°(D)

• Picture modes: WDR 120dB, 3D-NR

• G.711u audio compression

• 1 audio input

• Built-in speaker

• Two-way voice communication

• Audio modes: echo cancellation, digital noise reduction

• mechanical button

• 3 LED status indicators

• 1 alarm output

• 1 electric lock port

• 1 exit button port

• 1 lock control port

• 1 RJ45 network port (10/100M)

• Network protocols: SIP, P2P, IPv4, UPnP, SNMP, DNS, DDNS, RTSP, RTP, TCP, UDP

• Onvif and CGI support

• Power output 12V DC, 100mA

• Degree of protection IP65

• IK07 anti-vandalism protection

• Anodized aluminum front panel

• Ceiling or surface installation

• Power supply: 48V DC, 1A, via DAHUA-980 switch (VTNS1006A-2) not included.

• Power Consumption: ≤12W

• Operating temperature of -30C ~ +60°C

• Relative humidity 10%~90% (non-condensing)

• Dimensions: 96 (W) x 130 (H) x 28.5mm

• Weight: 350g

• Certifications: CE, FCC, UL
