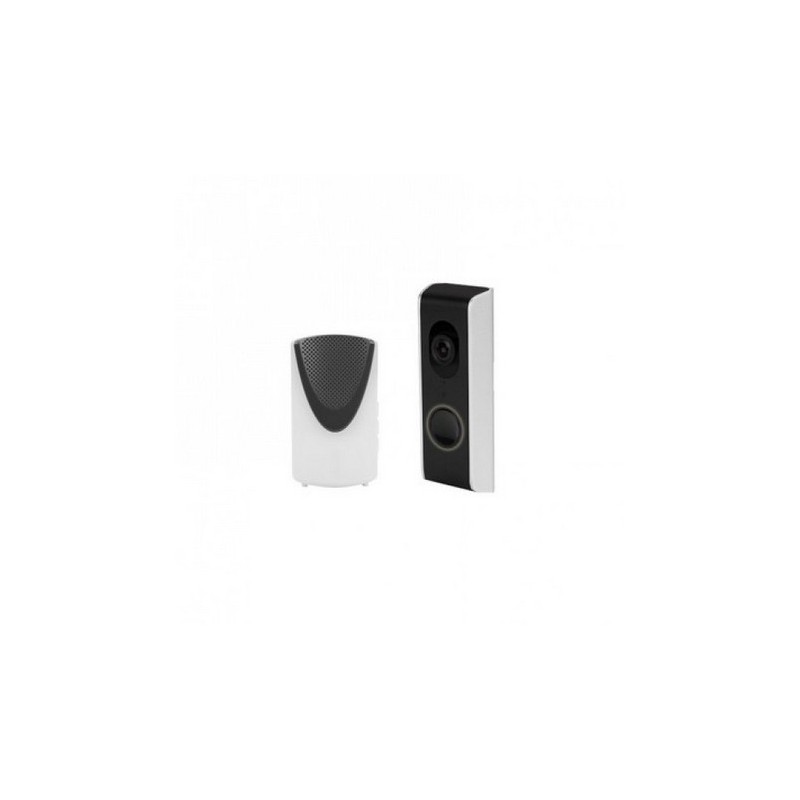

Risco RVDBA701000A - WIFI video door entry kit and chime

The Risco RVDBA701000A video door entry system integrates with the iRISCO, allowing users to receive real-time notifications on their smartphones from anywhere and conduct video chats with visitors.

The iRISCO also allows you to take photos and record a 30-second video clip.

The video door entry system is compatible with an electric lock for opening a door or gate.

High-definition video

The video door entry system records clear video in high definition with a 140° viewing angle, allowing owners to see and communicate with visitors from anywhere via

their smartphone app.

This way, homeowners always know who's at their doorstep, which enhances security and convenience.

Two-way audio

Built-in speaker and microphone, allowing for

seamless two-way communication with visitors and seamless

even if they are not at home.

Alerts and motion detection

The device uses advanced technology to detect

movements and sends instant notifications to

owners' smartphones.

Night Vision

Equipped with infrared LEDs, the video door entry system guarantees visibility

Clear, even in low-light conditions.

Homeowners can be sure that their property is protected from

day and night.

Application & Cloud Compatibility:

IRISCO App Version 5.11.0

HandyApp App Version 3.2.0

Cloud Version 5.11.0

Features Risco RVDBA701000A - WIFI video door entry kit and chime:

• Wi-Fi Video Door Phone

• CMOS sensor: 2 MP, 1/2.9''

• Resolution: 1080P (1920x1080)

• Fixed Lens: 2.7mm

• Detection: up to 3 meters

• Live resolution: 1080P / 720P / VGA

• Image enhancement features: IR filter, Day/night mode, Smart IR

• Angle of View: H: 115±5° V: 57±5° FOV: 140±5°

• Compression: H.264

• Two-Way Audio, Adjustable Volume

• Voltage: DC 9V-48V

• Power Consumption: IR off: 160-200mA, Max. 400mA IR on: 200-280mA, Max. 500mA

• 5 IR LEDs for Dark Scene Lighting: Environmental Digital Sensor

• IR LED angle: 120°

• LED Wavelength: 850nm

• TF Card, max. 128GB

• Door Chime: RF868

• Distance: Up to 150 meters

• Audio: 3 levels and Off mode

• 4 Melodies

• Controls: Melody Select Button, Volume Button, Pairing Button

• Battery Type: AA Battery x 3

• HandyApp App: Connect the Video Door Phone to Wi-Fi and IP and Record to a Site in the RISCO Cloud

• Operating temperature: -10°C to 50°C

• Video door entry dimensions: 11.3cm x 4.9cm x 2.4cm

• Chime dimensions: 10.5cm x 6cm x 2.8cm

• Chime weight: 146g

• Ethernet, Wifi, Bluetooth (for Wi-Fi adjustment)
