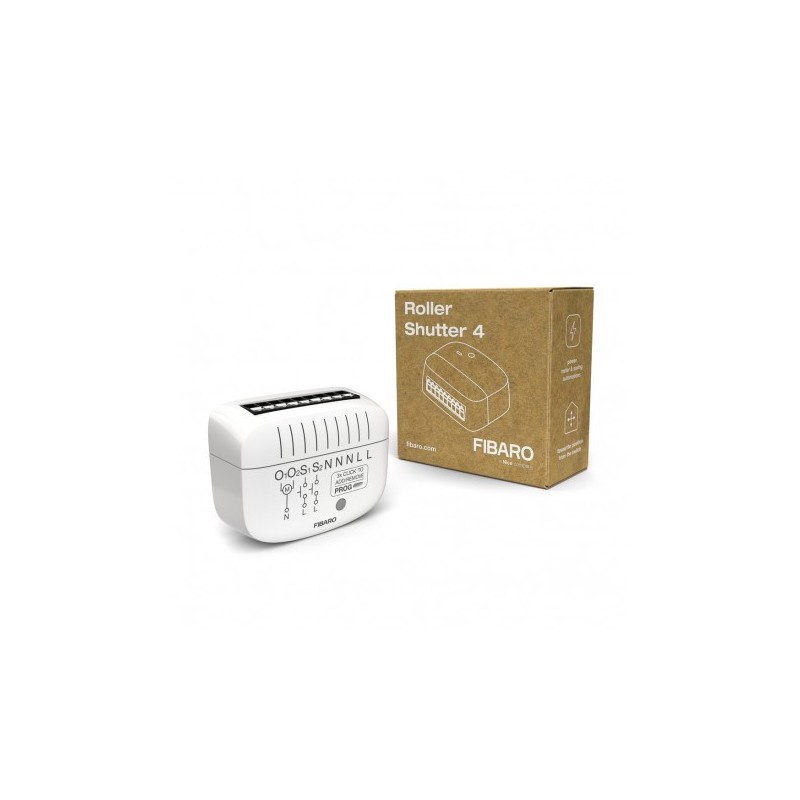

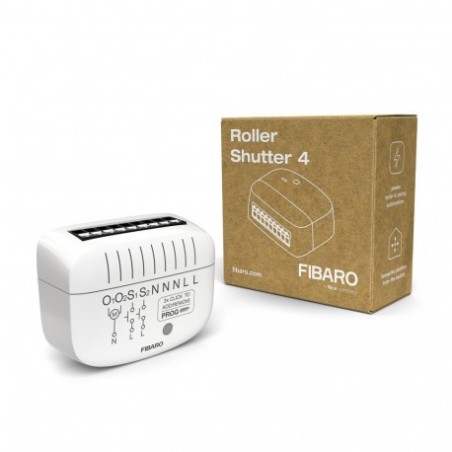

Fibaro FGR-224 - Roller Shutter module automatic roller shutter Z-Wave PLus 800

Fibaro FGR-224 Roller Shutter module automatic roller shutter Z-Wave PLus 800

The Fibaro FGR-224 roller shutter module has a proven design, sophisticated and even better technology - the new FIBARO FGR-224 roller shutter module

The Fibaro FGR-224 roller shutter module is equipped with the Z-Wave 800 chip,

As usual, you integrate your roller shutters, awnings, electric blinds and garage doors into the Z-Wave and Z-Wave Plus network.

Thanks to the Fibaro FGR-224 Roller Shutter, any device powered by an electric motor can be controlled remotely. The shutter control module enables precise positioning of motors with mechanical and electrical limit switches.

In addition, the device allows for current monitoring.

With classic switch control, by app or with pre-configured scenes, you can make your life more comfortable.

Even if you're already in bed, close your blinds comfortably without having to get up.

The FGR-224 Roller Shutter also contributes to safety.

When you leave the house, you close all windows and shutters at the touch of a button.

The compact radio module is placed in a wall box just behind the normal switch. The switch is no longer directly connected to the load, but serves as an input device for the FIBARO insert controlling the load.

The switch only sends the control signal to the insert, which controls the load again. The solution works with all switch models.

It is recommended to use wall boxes with a depth of 65 mm. But smaller boxes with a depth of only 45 mm can also be used if there is enough space behind the switch. The available space depends on the size of the traditional switch, the dimensions of the wall box, and the amount of additional wiring placed in that box.

The Z-Wave S2 is everything you need for a smart home: the latest version of Z-Wave, which reduces power consumption compared to older Z-Wave devices and wireless communication.

The Z-Wave S2 does all of this and expands the Z-Wave world:

• Advanced encryption (128-bit AES)

• More security against hacker attacks

• Improved battery life

• Faster communication between devices

Fibaro FGR-224 - Roller Shutter module automatic roller shutter Z-Wave PLus 800 :

• Compatible with any Z-Wave or Z-Wave+ controller

• One of the smallest shutter controllers available

Equipped with the Z-Wave 800 chip for better range

Supports Z-Wave network security modes: S0 with AES-128 encryption and S2 Authenticated with PRNG-based encryption

Can be used with blinds, venetian blinds, pergolas, curtains, awnings, blind motors with electronic or mechanical limit switches

Active power and energy measurement functionality

Works as a Z-Wave signal repeater (all non-battery-powered devices in the network will act as repeaters to increase network reliability)

Works with different types of switches: momentary, toggle and dedicated switches for roller shutters

Quick and easy installation thanks to the push-in connector and integrated bridge

To be installed in wall switch boxes

Power supply: 100-240V~50/60Hz

Current rating: 2A for motors with compensated power factor (inductive loads)

Supported Motor Type: AC Single-Phase Motors

Limit switches required: electronic or mechanical

Operating temperature: 0°C - 35°C

For installation in boxes: Ø = 50mm, depth ≥ 60mm

Radio Protocol: Z-Wave (800 Series Chip)

Radio signal strength: up to 5dBm

Radio frequency band: 868.4 MHz

Range: up to 100m outdoors, up to 30m indoors (depending on the terrain and building structure)

Dimensions (L x W x H): 46mm x 36mm x 19.9mm

Compliance with EU directives: RoHS 2011/65/EU, RED 2014/53/EU
