Eedomus Plus Fibaro FGR-224 - Eedomus Plus Roller shutter automation pack

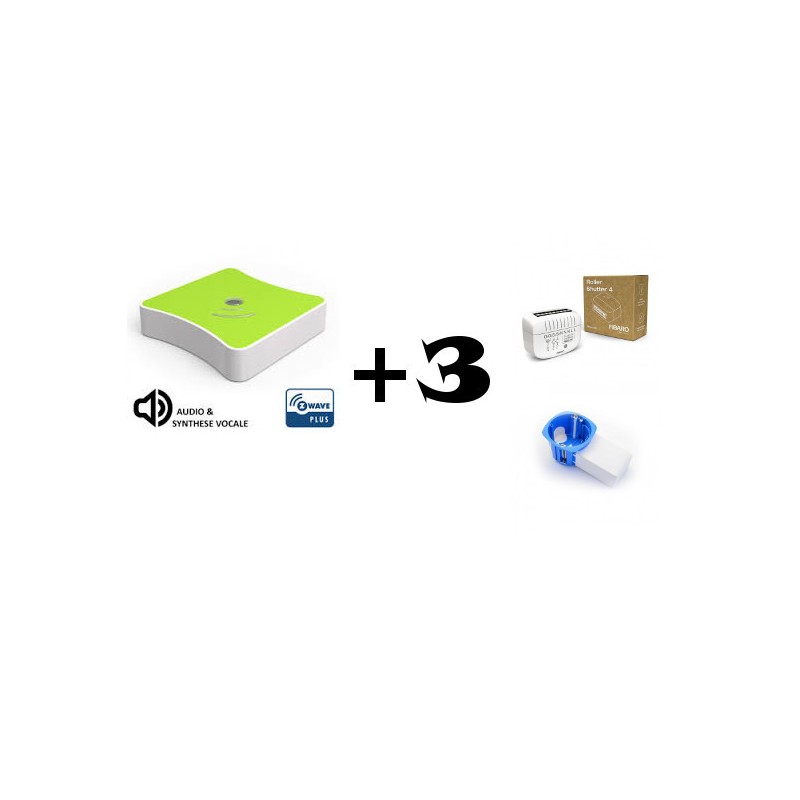

EEDOMUS roller shutter automation pack consisting of an EEDOMUS PLUS box, three Fibaro FGR-224 modules and three built-in modules BLI685500

The EEDOMUS PLUS box is powerful and integrates audio.

The EEDOMUS PLUS home automation box features a Z-Wave Plus+ chip and consumes only a maximum of 1 watt.

The EEDOMUS PLUS Box is compatible with most Z-Wave devices.

You can view the list here.

Features Eedomus Plus Fibaro FGR-224 - Eedomus Plus Roller shutter automation pack

BOX EEDOMUS PLUS features:

• New CPU/Memory/Storage for 10x Better Performance (Detailed Specs Coming Soon)

• Built-in 5th Gen Z-Wave+ chip

• Completely redesigned electronics, with power consumption limited to 1W.

• Built-in speaker

• Full compatibility with existing features and extensions

• 1 GHz ARM CORTEX-A8 processor

• 512MB DDR3 memory

• 4GB eMMC storage

• 10/100Mb Ethernet

• 2 USB port

• 4 wired connectors

• 1W+Mic Speaker

Features Fibaro FGR-224 - Roller Shutter Z-Wave PLus 800   roller shutter automation module:

• Compatible with any Z-Wave or Z-Wave+ controller

• One of the smallest shutter controllers available

• Equipped with Z-Wave 800 chip for better range

• Supports Z-Wave network security modes: S0 with AES-128 encryption and S2 Authenticated with PRNG-based encryption

• Can be used with blinds, venetian blinds, pergolas, curtains, awnings, blind motors with electronic or mechanical limit switches

• Active Power & Energy Measurement Functionality

• Works as a Z-Wave signal repeater (all non-battery-powered devices in the network will act as repeaters to increase network reliability)

Works with different types of switches: momentary, toggle and dedicated switches for roller shutters

Quick and easy installation thanks to push-in connector and integrated bridge

To be installed in wall switch boxes

Power supply: 100-240V~50/60Hz

Current rating: 2A for motors with compensated power factor (inductive loads)

Supported Motor Type: Single-Phase AC Motors

Limit switches required: electronic or mechanical

Operating temperature: 0°C - 35°C

For installation in boxes: Ø = 50mm, depth ≥ 60mm

Radio Protocol: Z-Wave (800 Series Chip)

Radio signal strength: up to 5dBm

Radio Frequency Band: 868.4 MHz

Range: up to 100m outdoors, up to 30m indoors (depending on terrain and building structure)

Dimensions (L x W x H): 46mm x 36mm x 19.9mm

Compliance with EU directives: RoHS 2011/65/EU, RED 2014/53/EU
