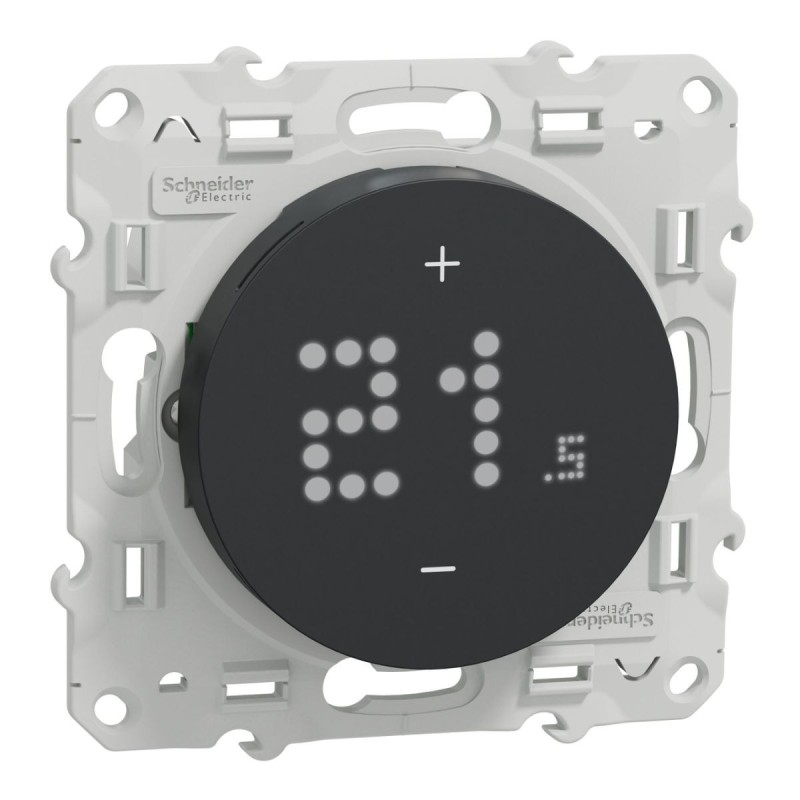

S540619 Wiser Odace - 2A Wired Smart Thermostat Anthracite

The Schneider Electric Odace Wiser Wired Connected Thermostat provides temperature control for hydronic heating and cooling systems with an LED display and ZigBee 3.0 connectivity.

Highlights of the wired smart thermostat

• ZigBee 3.0 Connectivity : Allows for smart control via the Wiser Home app.

• Hydronic System Compatibility : Works with radiators, heat pumps, and gas or oil boilers.

• Easy Installation : Simple setup with touch screen and quick setup without an internet connection.

This Schneider Electric Odace Wiser wired smart thermostat allows you to control the temperature efficiently. Compatible with 2A relays, it is ideal for hydronic systems such as radiators, UFH, circulation pumps and motorized valves. Using the ZigBee 3.0 protocol, it integrates seamlessly into the Wiser home system, acting as a room temperature controller for reversible air conditioning systems.

This versatile device can be used for heating or cooling in hydronic systems and is compatible with gas boilers, heat pumps or oil boilers. Thanks to the universal input, you can save energy in combination with a proximity sensor. Its design incorporates a touchscreen for easy setup and remote access via the Wiser Home app.

Operating with a single-phase 230 VAC input power supply, the thermostat consumes less than 0.5 W in standby mode. Its potential-free output is compatible with NC and NO valves or other loads up to 2 A resistive. With a transmission frequency of 2.4 GHz, its operating range is 30 m in free space. It can be installed in a CE60 wall box, has an IP30 degree of protection and is anthracite.

Characteristics

• Product Type : Wired Smart Thermostat with LED Display
• Rated Current : 2A
• Communication Protocol : ZigBee 3.0
• Compatibility : Hydronic radiators, hydronic UFH, circulation pumps, motorized valves, gas boilers, heat pumps, oil boilers
• Installation : CE60 Wall Box
• Power supply : 230 VAC single-phase +/- 10% at 50-60 Hz
• Standby power : < 0.5 W
• Output : Potential-free, compatible with NC and NO valves or loads up to 2 A resistive
• Transmission frequency : 2.4 GHz
• Operating range : 30 m in free space
• Colour : Anthracite
• Protection : IP30
• Certifications : CE, CB
