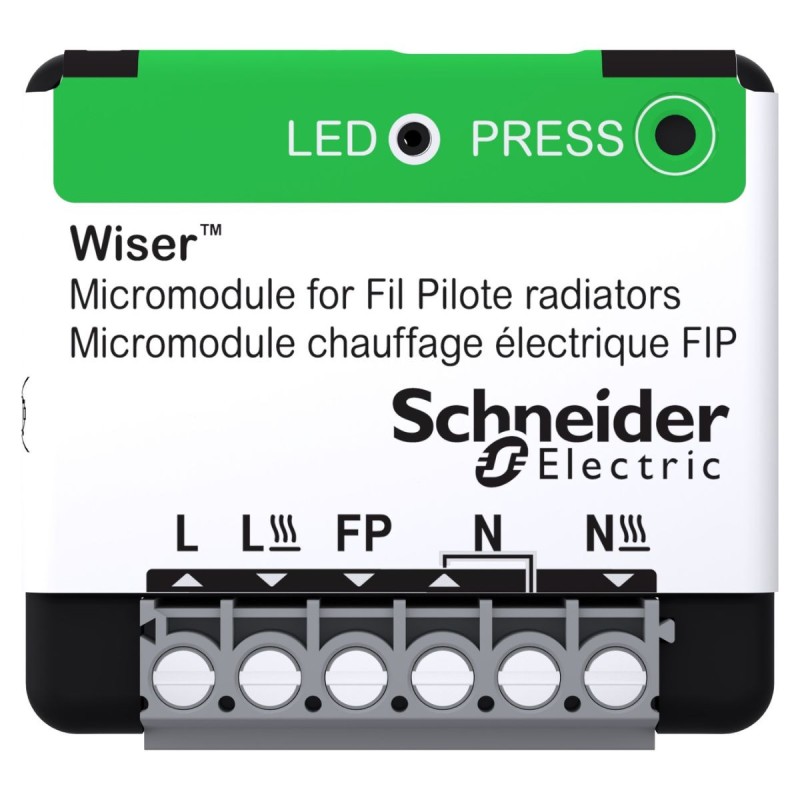

THG_CCTFR6710 Wiser - Zigbee Recessed Micromodule Control Electric Radiator Pilot Wire

The Wiser Zigbee recessed micromodule allows remote control and programming of the Pilot Wire electric radiators.

Highlights micromodule wiser THG_CCTFR6710:

• Remote Control: Manage your Pilot Wire radiators from anywhere via the Wiser Home app.
• Easy Installation: Fits perfectly into a flush-mount box or cable outlet.
• Wide Compatibility: Works with Wiser thermostats for precise, personalized heating control.

The Wiser Zigbee recessed micromodule is an advanced solution for the intelligent control of electric radiators equipped with the Pilot Wire system. It not only allows remote control, but also allows heating to be programmed according to the specific needs of comfort and energy saving. Compatible with the Wiser Home app, it offers centralized and intuitive management from a smartphone or tablet, ensuring optimal comfort in every room of your home.

Installation of the micromodule is simplified with its compact design that easily mounts in a standard flush mount box or cable outlet. Pairing this micromodule with a Wiser thermostat in each room is essential for precise heating control and efficient room temperature management.

By integrating this micromodule into the Wiser ecosystem, you can also extend its functionality to control other equipment such as roller shutters, lighting, sockets, hot water tank, electric vehicle charging and energy consumption monitoring. This allows for complete automation of your home, improving your comfort and reducing your energy consumption.

Characteristics:

• Load Type: Resistive load up to 3000 W, 16 A, 230 V AC
• Rated Operating Current: 16 A at 230 V, 50 Hz
• Rated shock resistance voltage: 2 kV
• Type of communication network: Zigbee Wireless (2.4 GHz)
• Maximum radio power: 13 dBm (20 mW)
• Output Type: Pilot wire 100-240 V AC
• Connection mode: 6 screw terminals for 0 to 2.5 mm² cable
• Size: Height 16.9 mm, Width 40 mm, Depth 44 mm
• Net weight: 0.042 kg
• Software Class: Class A, meets safety and performance standards
