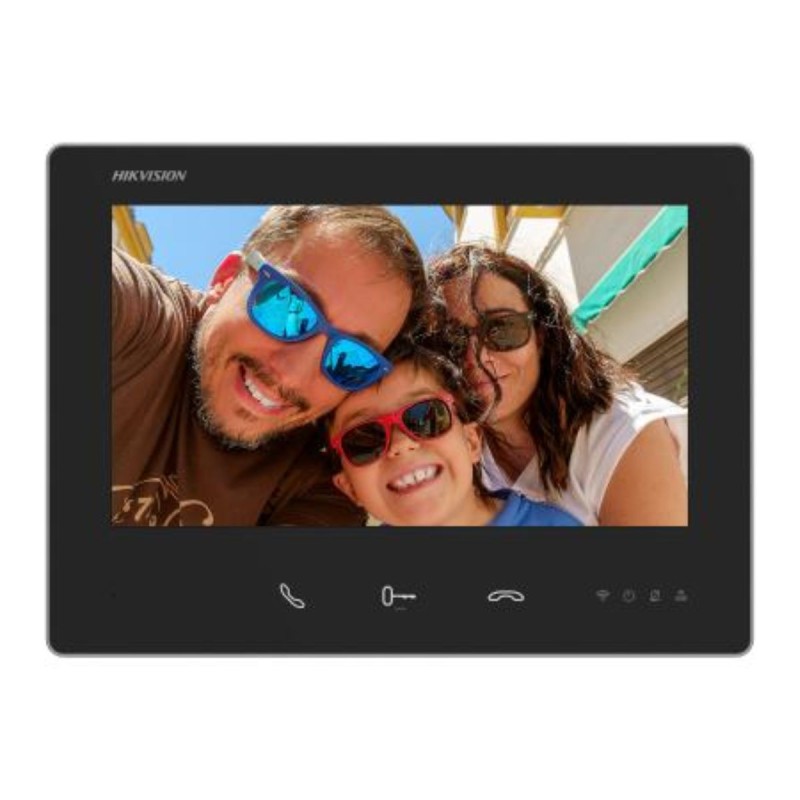

Hikvision DS-KH7300EY-WTE2 - Black IP Indoor Video Monitor

The Hikvision 2-wire HD indoor station is an advanced indoor monitoring system offering a 7-inch touchscreen with a high resolution of 1024x600, ideal for residential or commercial use.

Highlights of Hikvision Intercom Monitor:

• High-resolution touchscreen : 7-inch screen with 1024x600 resolution for exceptional image quality.

• Ease of use : Simple setup with touch buttons and compatibility with the Hik-Connect app.

• Accessibility and versatility : Buttons adapted for people with reduced mobility and support for multiple connection topologies.

The HD 2-wire indoor station is a modern and intuitive solution for managing indoor security. Equipped with a 7-inch touchscreen, this station offers a resolution of 1024x600, allowing a clear and crisp viewing of images. Its ergonomic design includes three touch buttons and a physical reset button, making it easy to access key features, including answering calls, unlocking doors, and placing on hold. In addition, it has built-in light indicators for Wi-Fi, power, silent mode, and usage status.

With the ability to interact via the Hik-Connect app, it allows for efficient remote control. Finally, it is equipped with built-in microphones and speakers for quality audio communication with noise cancellation and echo cancellation, ensuring optimal sound clarity.

Features of Hikvision Video Monitor

System

• Operating System : Embedded Linux
• ROM : 32 MB
• RAM : 128 MB
• CPU : Embedded Processor

Display

• Screen Size : 7 inches
• Operation Method : Capacitive Touch Screen
• Type : Color TFT display
• Resolution : 1024 x 600

Audio

• Audio Compression Standard : G.711 U, G.711 A
• Audio Input : Built-in omnidirectional microphone
• Audio Output : Built-in Speaker
• Audio Compression Rate : 64 Kbps
• Audio Quality : Noise Cancellation and Echo Cancellation
• Volume Adjustment : Adjustable

Capacity

• Events Capacity : 200 photos captured (with TF card)
• Capacity of Linked Interior Extensions : 3

Network

• Communication Protocol : TCP/IP, RTSP
• Wi-Fi Standard : 2.4 GHz, IEEE802.11b/g/n

Interfaces

• Alarm Input : 1
• TF Card : Up to 128GB, SD version 2.0 or lower
• DIP Switch : 5 decimal switches and 4 binary switches
• Power Supply : 48V input, powered by DS-KAD7060EY or DS-KAD7061EY
• Two-Wire IP Interface : 2 (1 for input, 1 for output)

General

• Buttons : 3 touch buttons (Answer, Unlock, Hang Up) + 1 physical button (Reset)
• Installation : Surface Mount
• Indicators : 4 (Wi-Fi, Power, Mute, In Use)
• Operating Temperature : -10°C to 50°C (14°F to 122°F)
• Operating Humidity : 10% to 90% (non-condensing)
• Dimensions : 190.2 mm x 138.2 mm x 20 mm (7.5" x 5.4" x 0.8")
• Power consumption : ≤ 5 W
