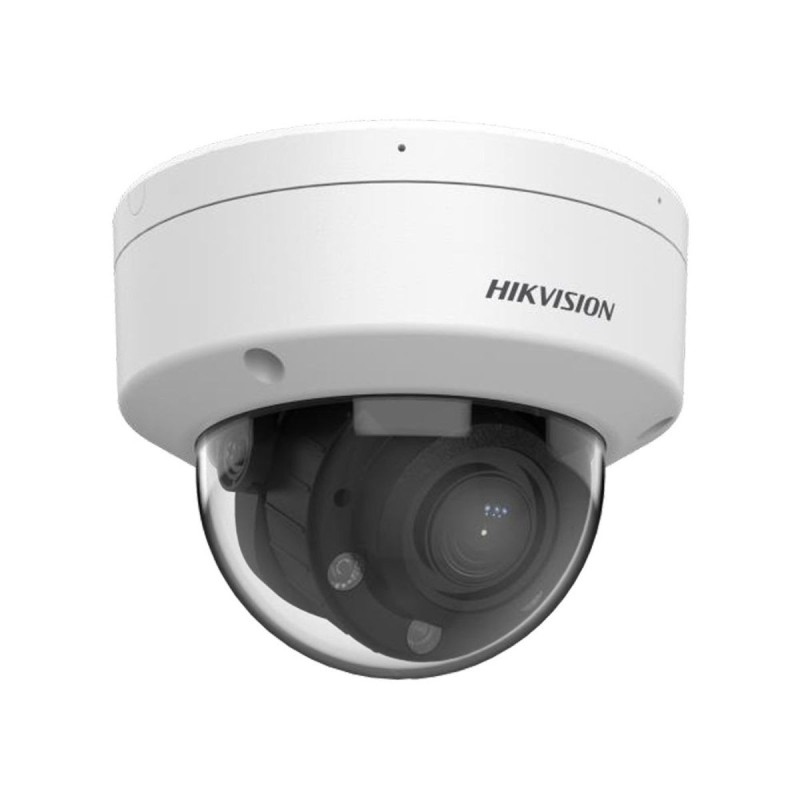

Hikvision HWI-D640HA-LZU - HiWatch 4MP IP Outdoor Dome Camera

The Hikvision HWI-D640HA-LZU is a 4MP outdoor IP dome camera with intelligent night vision, a motorized lens, and rugged IP67/IK08 protection.

Highlights of the hikvision dome camera:

• Advanced Night Vision: Dual intelligent IR and white light illumination up to 30 meters, ensuring clear 24/7 monitoring.

• Motorized optics: 2.8~12mm motorized lens providing zoom flexibility and adjustable viewing angle.

• Robustness and protection: Metal and plastic housing with IP67 protection and IK08 impact resistance.

The Hikvision HWI-D640HA-LZU outdoor dome camera from the HiWatch series is designed to provide reliable and high-quality surveillance in various outdoor environments. Equipped with a 4-megapixel CMOS sensor, it captures sharp and detailed images with a maximum resolution of 2560x1440. Its 120dB WDR technology allows you to effectively manage high light and backlight conditions.

Equipped with a 2.8-12mm motorized lens, this camera offers exceptional flexibility to adjust the angle of view from 96.7° to 29.7° horizontally. Night vision is optimized thanks to a smart dual illumination that combines infrared and white light, allowing visibility up to 30 meters in total darkness. With a sensitivity of 0.005 lux (F1.6 in color) and 0 lux with IR on, it provides continuous monitoring even in low-light conditions.

The HWI-D640HA-LZU incorporates advanced features such as Motion Detection 2.0, which is able to distinguish people from vehicles, reducing false alarms. The built-in microphone allows for audio monitoring, complementing visual monitoring. The microSD card slot supports up to 512GB of local storage.

Its rugged, IP67 and IK08 compliant housing protects the camera from weather and vandalism. Compatible with ONVIF protocols, it easily integrates into various video management systems, including iVMS-4200 and Hik-Connect.

Features of the HWI-D640HA-LZU HiWatch camera:

• Resolution: 4 MP (2560x1440), 1080P, 720P, VGA, Q720P.
• Sensor: 4 megapixel 1/3" CMOS.
• Lens: Motorized 2.8~12mm, viewing angle: 96.7°~29.7°(H), 51.7°~16.7°(V), 114.3°~34°(D).
• Night Vision: Dual IR illumination and white light, range up to 30 meters.
• Sensitivity: 0.005 lux (F1.6 in color), 0 lux with IR on.
• Video compression: H.265+, H.265, H.264+, H.264, MJPEG.
• Video Stream:
  • Stream 1: 4MP (20 fps), 1080P, 720P (25/24 fps).
  • Stream 2: 720P, VGA, Q720P (25/24 fps).
• Features:
  • Motion Detection 2.0 with Classification of People and Vehicles.
  • Built-in microphone.
  • MicroSD card slot up to 512GB.
  • Image adjustments: rotation, saturation, brightness, contrast, sharpness, gain and white balance.
  • Fixed ROI for the primary stream.
  • 4 programmable privacy masks.
• Network Interface: 10/100M RJ45 Ethernet.
• Network Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP.
• ONVIF Support: ( S/G/T), ISAPI, SDK.
• Compatible Software: Web browsers, iVMS-4200, Hik-Connect.
• Power supply: 12V DC (±25%) / PoE (802.3af), power consumption: 9.6W (12V) / 12W (PoE).
• Size: Ø121.5 x 97.6 mm.
• Weight: 540 g (net), 740 g (gross).
• Protection: IP67, IK08, metal and plastic housing, operating temperature from -30°C to +60°C, humidity ≤ 95%.
• Rotation Modes: 3 Axis : 0°~355° (PAN), 0°~70° (TILT), 0°~355° (ROTATION).
